| Place of Origin: | China |
|---|---|
| Brand Name: | BODA |
| Certification: | ISO9001:2015,ISO14001 |
| Model Number: | BD-801 |
| Minimum Order Quantity: | 50kg |
| Price: | US$45.0/kg-$49.0/kg EX-WORK |
| Packaging Details: | Plastic box/wooden case/carton case |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 15-30 tons per month |
| Materials: | WC Particles + Ni/Ag(Cu) Alloy | Particle: | Dia:1.6-9.5mm |
|---|---|---|---|
| Application: | Two Types For Various Applications | Two Types: | Cutting Grades And Wear Grades |
| Rod Length: | 450mm | Particle Surface: | Sharp |
| Rod Weight:: | 500g | ||
| Highlight: | Flux Coated Welding Rods,450mm Welding Rods,450mm Tungsten Carbide Composite Rods |
||

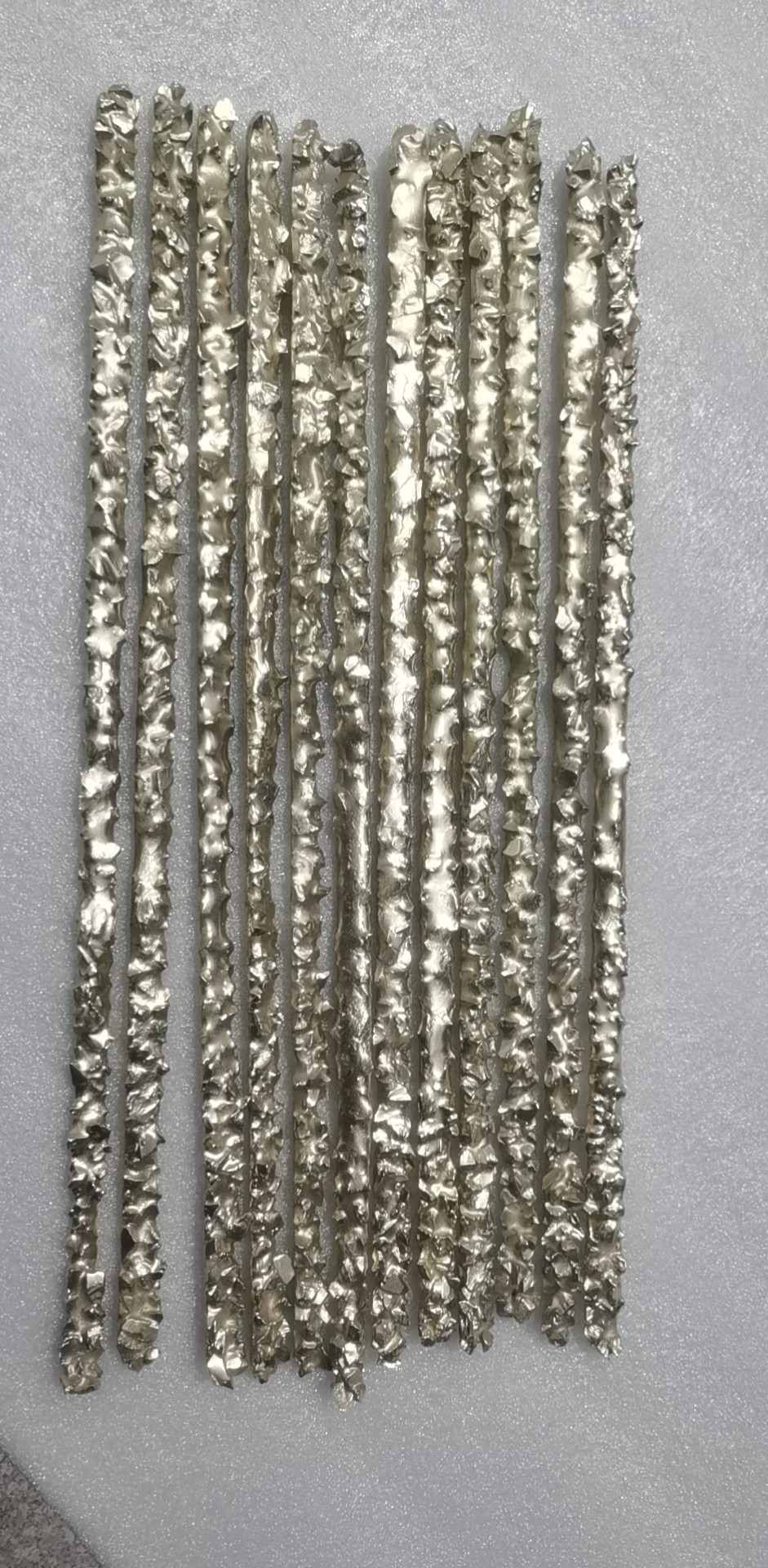

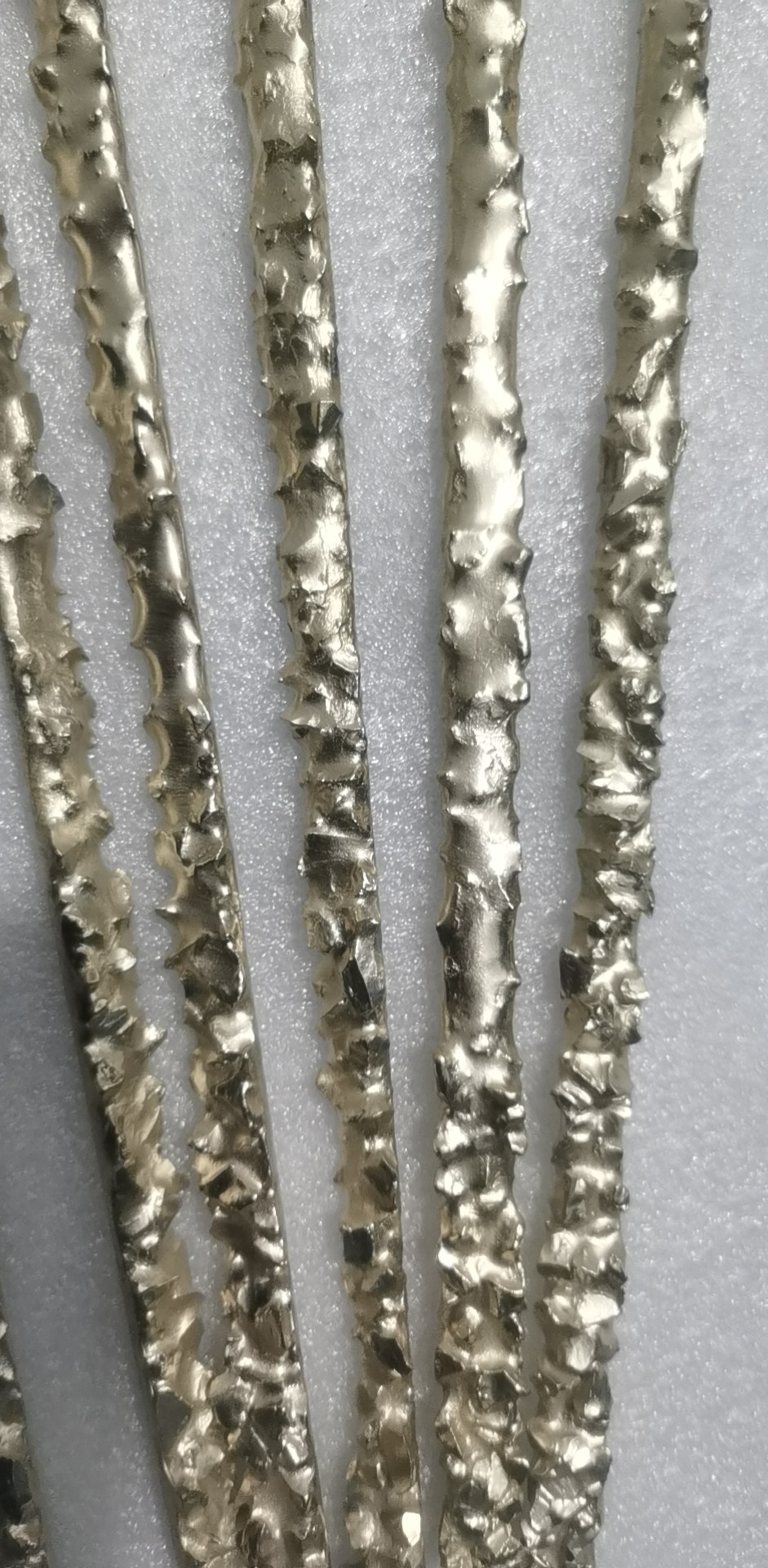

Cemented Carbide Composite Rod
Introduction:
YD type carbide rod (referred YD type electrode), is composed of granular cemented carbide alloy casing with a flexible blend.Coated with a layer of special flux and coloring to identify the size of the particle level. Sintered carbide particles primarily tungsten carbide cobalt.
Composition: NCu, tungsten carbide grits
Hardness:HRA90-HRA 92
TRS: >690MPa
Applications:
Tungsten carbide composite rod is applied to perform one or both of two functions: one, to increase the speed of downhole milling and cutting; and two, to protect the surface of tools subject to abrasive wear, maintaining full guage on stabilizers, guides keyseat wipers, and other downhole tools.
YD carbide rod is mainly used for welding petroleum, mining, coal mining, geology, construction and other industries in some serious wear and tear or a combination of cutting parts. Such as: milling shoes, wear shoes, centralizers, reamer, drill pipe fittings, hydraulic cutter, scraper blades, plow iron, core drill bits, hammers drill, screw drill and so on.
