| Place of Origin: | China |
|---|---|
| Brand Name: | BODA |
| Certification: | ISO9001:2015 |
| Model Number: | BD-WR2126 |
| Minimum Order Quantity: | Negotiable |
| Price: | $60-70/kgs |
| Packaging Details: | 5kg/10kg/15kg per Coil |
| Delivery Time: | 7-15days |
| Payment Terms: | Negotiable |
| Supply Ability: | 10 tons/month |
| Carbide Hardness: | 2100±100HV0.1 | Coating Hardness: | 55-65HRC |
|---|---|---|---|
| Purpose: | Wear Resistance | Process: | Oxy-acetylene Welding |
| Name: | Flexible Welding Rope | ||
| Highlight: | Anti Corrosion Welding Rods,5.0mm Welding Rods,5.0mmWelding Rods |
||

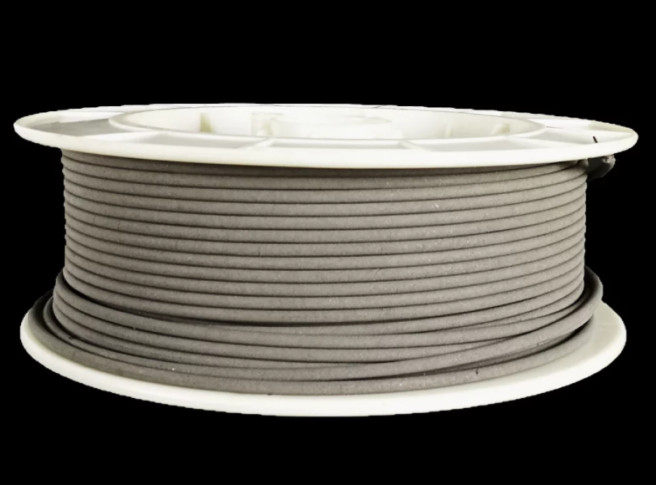

Nickel-Core, Flexible Welding Wire Coated With Tungsten Carbide And Nickel-Based Matrix
Introduction:
BD-WR2126 consists of nickel wire coated with blocky cast tungsten carbide (CTC) and a nickel-based alloy matrix.
The nickel-based alloy used in these products produces hardface deposits with excellent corrosion resistance.
They excel in applications where maximum surface protection is required.
Typical applications where these products are used for such as
Stabilizers and other oil-field equipment,Augers, Impellers and Food and chemical etc.
Chemical composition:
| Grade | Cast Tungsten Carbide | Self-Fluxing Nickel Alloy |
| BD-WR2126 | 65% | 35% |
| Item: | Diameter | Grain Size | Length(mm) | Weight/Coil |
|
BD-WR2126/4 |
Φ4.0mm |
0.4-0.7mm=25-40mesh 0.2-0.4mm=40-70mesh 0.1-0.2mm=70-140mesh |
Coil | 15 kg |
|
BD-WR2126/5 |
Φ5.0mm |
0.4-0.7mm=25-40mesh 0.2-0.4mm=40-70mesh 0.1-0.2mm=70-140mesh |
Coil | 15 kg |
|
BD-WR2126/6 |
Φ6.0mm |
0.4-0.7mm=25-40mesh 0.2-0.4mm=40-70mesh 0.1-0.2mm=70-140mesh |
Coil | 15 kg |
Packing details:
Wire and Rods series products:
| Product | Regular Particle Size | Main Performance |
Spray Process |
Applicaitons |
| tubular welding rods | #2 Dia7*400mm 20-30mesh | Excellent wear resistance and impact resistance | Welding |
Surfacing of workpiece surface in metallurgy, construction, grain and oil processing, mining machinery and other industries. |
| #3 Dia6*400mm 30-40mesh | ||||
| #4 Dia 5*400mm 40-60mesh | ||||
| #5 Dia4*400mm 60-80mesh | ||||
| Flexible welding rope | Dia4mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
Wear resistance,Anti-Corrosion | Oxy-acetylene Welding |
Oil bit, stabilizer , geological bit, feed screw etc. |
| Dia6mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
||||
| Dia8mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
