| Place of Origin: | China |
|---|---|
| Brand Name: | BODA |
| Certification: | ISO9001:2015 |
| Model Number: | BD-HT-1/2/3/4 |
| Minimum Order Quantity: | Negotiable |
| Price: | $35-40/kgs |
| Packaging Details: | 5kg/10kg per paper box |
| Delivery Time: | 7-15days |
| Payment Terms: | Negotiable |
| Supply Ability: | 10 tons/month |
| Manufacture: | Filled Tubular Rod | Chemistry: | WFeC |
|---|---|---|---|
| Purpose: | Wear Resistance | Process: | Oxy-acetylene Welding |
| Specification: | ,Φ4.0*600mm,Φ5.0*600mm,Φ6.0*600mm,Φ7.0*600mm | Particle Size: | 60-80mesh,40-60mesh,30-40mesh,20-30mesh |
| Highlight: | 400mm Welding Rods,Cast Welding Rods,Tubular Welding Rods |
||

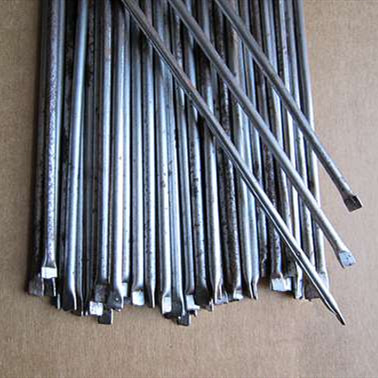

Tubular Welding Rods Filled With Cast Tungsten Carbide
Introduction:
The Cast WC tubular welding rods produce hard overlay deposits on mild or low-alloyed steels
with a carbon content up to 0.5 %.
The main applications are tooling for mining, oil drilling, deep drilling, clay processing and brick manufacturing.
Chemical composition:
| W | T.C | F.C | Fe | Ti | Ni | Cr | Co | V |
| Balance | 3.8-4.2 | ≤0.05 | 0.5 | ＜0.1 | ＜0.1 | ＜0.1 | ＜0.1 | ＜0.1 |
Specification
| Grade | Spec. | Fillings characters | Application |
| BD-HT-2 | Φ7X600mm |
60-80 mesh 40-60 mesh 30-40 mesh 20-30 mesh
|
Metallurgy, construction, Grain and oil processing, Road construction, Surfacing welding of workpiece. surface in mining machinery industry, petroleum,Surfacing of geological tools. |
| BD-HT-3 | Φ6x600mm | ||
| BD-HT-4 | Φ5x600mm | ||
| BD-HT-5 | Φ4x600mm |
Wire and Rods series products:
| Product | Regular Particle Size | Main Performance |
Spray Process |
Applicaitons |
| tubular welding rods | #2 Dia7*400mm 20-30mesh | Excellent wear resistance and impact resistance | Welding |
Surfacing of workpiece surface in metallurgy, construction, grain and oil processing, mining machinery and other industries. |
| #3 Dia6*400mm 30-40mesh | ||||
| #4 Dia 5*400mm 40-60mesh | ||||
| #5 Dia4*400mm 60-80mesh | ||||
| Flexible welding rope | Dia4mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
Wear resistance,Anti-Corrosion | Oxy-acetylene Welding |
Oil bit, stabilizer , geological bit, feed screw etc. |
| Dia6mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
||||
| Dia8mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
About Boda
Q1: Are you a manufacturer?
Answer: Yes, we are factory founded on 2007.
Q2:Can you give me a discount price?
Answer:Sure,It‘s depends on order quantity.
Q3:How can I get a sample?
Answer:free samples is available,but freight charges will be at your account and the charges will be return to you or deduct from your order in the future.
Q4: How to confirm the Product Quality before placing orders?
Answer:You can get free samples for some products,you only need to pay the shipping cost or arrange a courier to us and take the samples.
You can send us your product specifications and requests,we will manufacture the products accordingly.
Q5: :How do you treat quality complaint?
Answer:First of all, our quality control team will reduce the quality problem to near zero.
In case of there is a real quality problem caused by us, we will send you free goods for replacement or refund your loss.
