| Place of Origin: | China |
|---|---|
| Brand Name: | BODA |
| Certification: | ISO9001:2015 |
| Model Number: | BD-HT-1/2/3/4 |
| Minimum Order Quantity: | Negotiable |
| Price: | $35-40/kgs |
| Packaging Details: | 5kg/10kg per paper box |
| Delivery Time: | 7-15days |
| Payment Terms: | Negotiable |
| Supply Ability: | 10 tons/month |
| Manufacture: | Filled Tubular Rod | Chemistry: | WFeC |
|---|---|---|---|
| Purpose: | Wear Resistance | Process: | Oxy-acetylene Welding |
| Specification: | ,Φ4.0*600mm,Φ5.0*600mm,Φ6.0*600mm,Φ7.0*600mm | Particle Size: | 60-80mesh,40-60mesh,30-40mesh,20-30mesh |
| Highlight: | Tungsten Carbide Welding Rods,4mm Welding Rods,6mm Tungsten Carbide Tube |
||

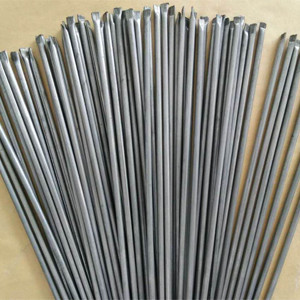

Tungsten Carbide Filled Tubular Welding Rod
Specification CTC Size Filler Weight/Rod Weight﹙%﹚
2# 20-30mesh 6:4
3# 30-40mesh 6:4
4# 40-60mesh 6:4
5# 60-80mesh 6:4
Available diameters: 4mm,5mm,6mm; Available length: 500mm, 600mm, 700mm
Cast Tungsten carbide based tube welding rod is a kind of wear-resistant welding materials using cast tungsten carbide as hard phase.
The welding layer it forms possesses quality such as high hardness and great wear resistance.
It is recommended to be applied on the surface of different kinds of workpieces of mining machinery, geological tools, and petroleum drilling tolls. The suitable welding method is using oxyacetylene with weak carburizing flame.
Application:
Wire and Rods series products:
| Product | Regular Particle Size | Main Performance |
Spray Process |
Applicaitons |
| tubular welding rods | #2 Dia7*400mm 20-30mesh | Excellent wear resistance and impact resistance | Welding |
Surfacing of workpiece surface in metallurgy, construction, grain and oil processing, mining machinery and other industries. |
| #3 Dia6*400mm 30-40mesh | ||||
| #4 Dia 5*400mm 40-60mesh | ||||
| #5 Dia4*400mm 60-80mesh | ||||
| Flexible welding rope | Dia4mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
Wear resistance,Anti-Corrosion | Oxy-acetylene Welding |
Oil bit, stabilizer , geological bit, feed screw etc. |
| Dia6mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
||||
| Dia8mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
