| Place of Origin: | China |
|---|---|
| Brand Name: | BODA |
| Certification: | ISO9001:2015 |
| Model Number: | BD-WRS2126 |
| Minimum Order Quantity: | Negotiable |
| Price: | $65-70/kgs |
| Packaging Details: | 5kg/10kg/15kg per Coil |
| Delivery Time: | 7-15days |
| Payment Terms: | Negotiable |
| Supply Ability: | 2 ton/month |
| Carbide Hardness: | 2700±100 HV0.1 | Coating Hardness: | 55-65HRC |
|---|---|---|---|
| Purpose: | Wear Resistance | Process: | Oxy-acetylene Welding |
| Highlight: | Nickel Core Flexible Welding Wire,Tungsten Carbide Flexible Welding Wire,Flexible Tungsten Carbide Welding Wire |
||
Nickel-Core, Flexible Welding Wire Coated With Tungsten Carbide And Nickel-Based Matrix
Introduction:
BD-WRS2126 consists of nickel wire coated with spherical cast tungsten carbide (CTC-S) and a nickel-based alloy matrix.
The nickel-based alloy used in these products produces hardface deposits with excellent corrosion resistance.
The shape and hardness of the spherical cast tungsten carbide produces deposits with much higher
wear resistance compared to standard cast and crushed carbide.
These flexible welding wires are designed for application using oxy-acetylene welding,
and have excellent flow and wetting characteristics at a low welding temperature of approximately 1050 °C (1925 °F).
They excel in applications where maximum surface protection is required.
Typical applications where these products are used for such as
Stabilizers and other oil-field equipment,Augers, Impellers and Food and chemical etc.
Chemical composition:
| Grade | Cast Tungsten Carbide | Self-Fluxing Nickel Alloy |
| BD-WRS2126 | 68% | 32% |
| Item: | Diameter | Grain Size | Length(mm) | Weight/Coil |
|
BD-WRS2126/4 |
|
0.2-0.4mm=40-70mesh |
Coil | 15 kg |
|
BD-WRS2126/5 |
|
0.2-0.4mm=40-70mesh
|
Coil | 15 kg |
|
BD-WRS2126/6 |
|
0.2-0.4mm=40-70mesh
|
Coil | 15 kg |
Product Features & Benefits:

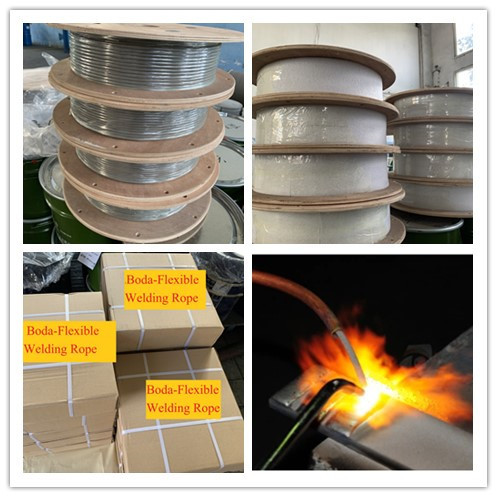

Packing details:
Wire and Rods series products:
| Product | Regular Particle Size | Main Performance |
Spray |
Applicaitons |
| tubular welding rods | #2 Dia7*400mm 20-30mesh | Excellent wear resistance and impact resistance | Welding |
Surfacing of workpiece |
| #3 Dia6*400mm 30-40mesh | ||||
| #4 Dia 5*400mm 40-60mesh | ||||
| #5 Dia4*400mm 60-80mesh | ||||
| Flexible welding rope | Dia4mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
Wear resistance,Anti-Corrosion | Oxy-acetylene Welding |
Oil bit, stabilizer , |
| Dia6mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
||||
| Dia8mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
