| Place of Origin: | China |
|---|---|
| Brand Name: | BODA |
| Certification: | ISO9001:2015 |
| Model Number: | BD-WR2126 |
| Minimum Order Quantity: | Negotiable |
| Price: | $60-70/kgs |
| Packaging Details: | 5kg/10kg/15kg per Coil |
| Delivery Time: | 7-15days |
| Payment Terms: | Negotiable |
| Supply Ability: | 10 tons/month |
| Carbide Hardness: | 2100±100HV0.1 | Coating Hardness: | 55-65HRC |
|---|---|---|---|
| Purpose: | Wear Resistance | Process: | Oxy-acetylene Welding |
| Overlay Thickness: | 2-8mm | Proportion Of WC: | 60-70%，CTC |
| Highlight: | 4mm welding wire rope,4mm nickel welding wire,Tungsten Carbide welding wire rope |
||

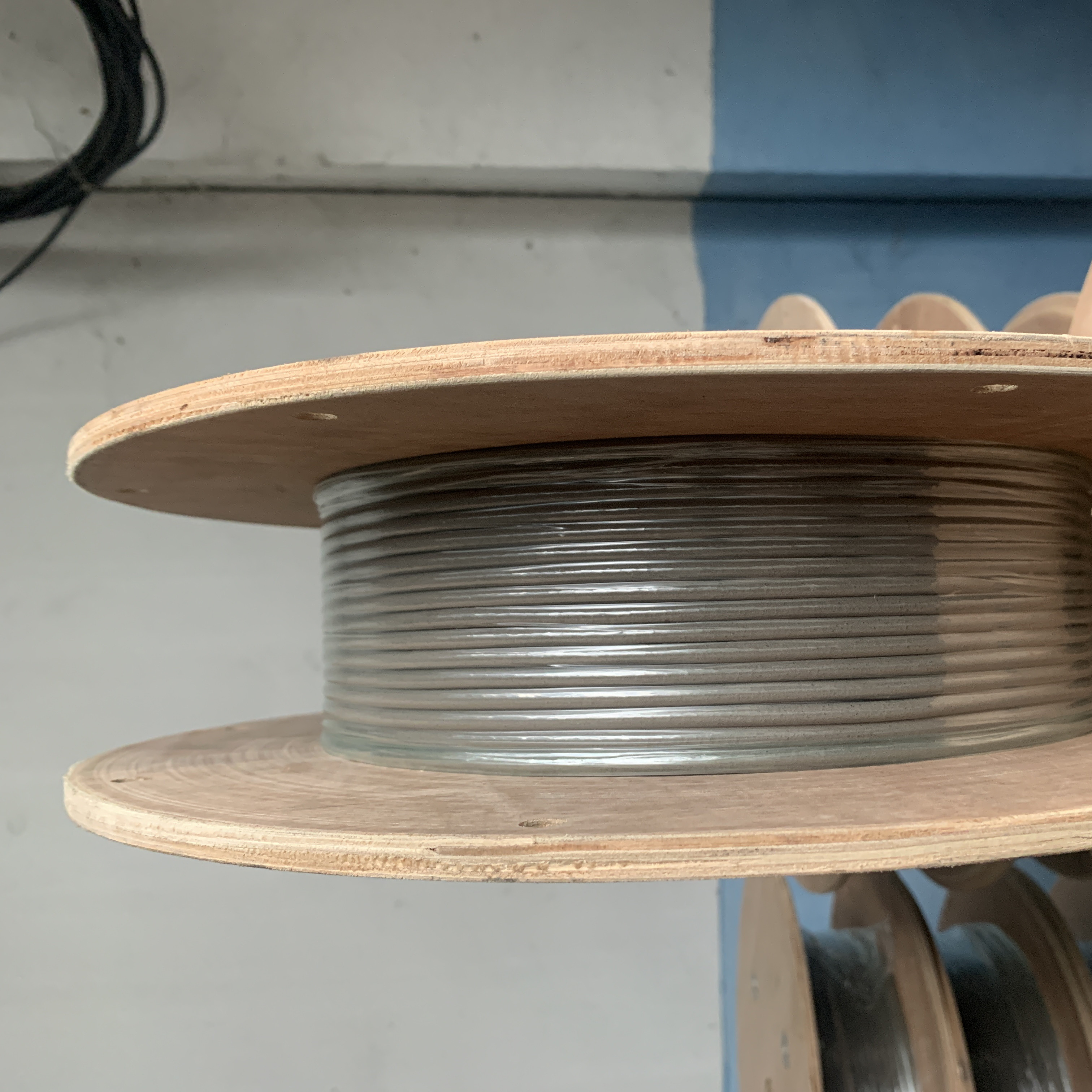

Flexible Welding Rope With Cast Tungsten Carbide And Nickel-Based Matrix
Physical Properties:
|
Series |
Diameter |
Cast WC | Ni-based self-fluxing alloy | |||
| Particle Size | Content | Hardness | Content | Hardness | ||
|
BD-WR2126
|
4mm 6mm 8mm |
F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
67% 62% |
HV0.1: 2200±100 |
33% 38% |
HRC:40±2 |
Product Features & Benefits:
Packing details:
Wire and Rods series products:
| Product | Regular Particle Size | Main Performance |
Spray Process |
Applicaitons |
| tubular welding rods | #2 Dia7*400mm 20-30mesh | Excellent wear resistance and impact resistance | Welding |
Surfacing of workpiece surface in metallurgy, construction, grain and oil processing, mining machinery and other industries. |
| #3 Dia6*400mm 30-40mesh | ||||
| #4 Dia 5*400mm 40-60mesh | ||||
| #5 Dia4*400mm 60-80mesh | ||||
| Flexible welding rope | Dia4mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
Wear resistance,Anti-Corrosion | Oxy-acetylene Welding |
Oil bit, stabilizer , geological bit, feed screw etc. |
| Dia6mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
||||
| Dia8mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
