| Place of Origin: | China |
|---|---|
| Brand Name: | BODA |
| Certification: | ISO9001:2015 |
| Model Number: | BD-HT-1/2/3/4 |
| Minimum Order Quantity: | Negotiable |
| Price: | $35-40/kgs |
| Packaging Details: | 5kg/10kg per paper box |
| Delivery Time: | 7-15days |
| Payment Terms: | Negotiable |
| Supply Ability: | 10 tons/month |
| Manufacture: | Filled Tubular Rod | Chemistry: | WFeC |
|---|---|---|---|
| Purpose: | Wear Resistance | Process: | Oxy-acetylene Welding |
| Specification: | ,Φ4.0*600mm,Φ5.0*600mm,Φ6.0*600mm,Φ7.0*600mm | Particle Size: | 60-80mesh,40-60mesh,30-40mesh,20-30mesh |
| Highlight: | Oil Drilling Tools Welding Rods,600mm Welding Rods,600mm tungsten carbide composite rods |
||

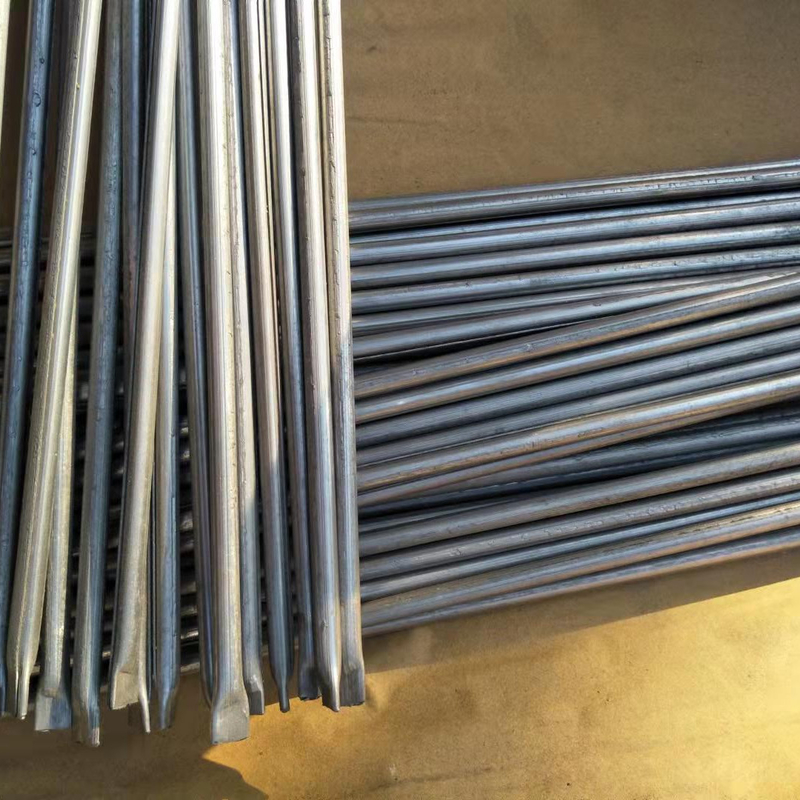

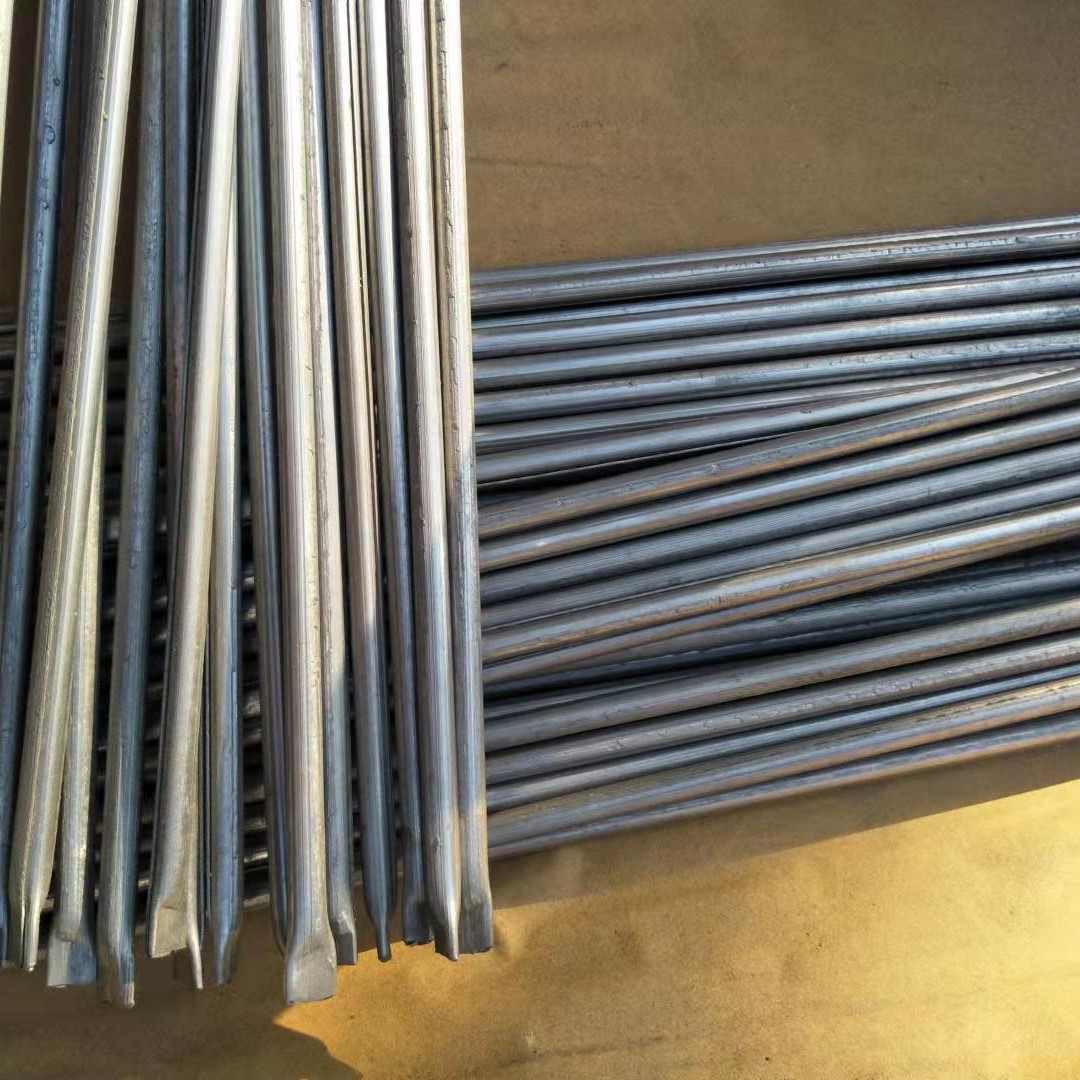

Cast Tungsten Carbide Welding Rods
Chemical composition:
| W | T.C | F.C | Fe | Ti | Ni | Cr | Co | V |
| Balance | 3.8-4.2 | ≤0.05 | 0.5 | ＜0.1 | ＜0.1 | ＜0.1 | ＜0.1 | ＜0.1 |
Introduction:
Cast Tungsten Carbide Welding Rods is tubular steel welding rod filled with first-melt quality cast tungsten carbide (CTC).
composition W2C and WC alloy particles, hardness 93HRA melting point 1600-1800 degrees.
It is suitable for surfacing welding of oil drilling tools, building materials machinery, sugar cane crushing tools, drilling bits, straw returning mill and feed mill blades and other easily worn parts to make it alloy wear-resisting tools.
Tungsten carbide products are widely used in oil drilling tools, construction machinery easy to wear parts of the surface reinforcement and hardening.
Method of use:
Oxygen - acetylene flame surfacing, with high wear resistance.
Specification
| Grade | Spec. | Fillings characters | Application |
| BD-HT-2 | Φ7X600mm |
60-80 mesh 40-60 mesh 30-40 mesh 20-30 mesh
|
Metallurgy, construction, Grain and oil processing, Road construction, Surfacing welding of workpiece. surface in mining machinery industry, petroleum,Surfacing of geological tools. |
| BD-HT-3 | Φ6x600mm | ||
| BD-HT-4 | Φ5x600mm | ||
| BD-HT-5 | Φ4x600mm |
Wire and Rods series products:
| Product | Regular Particle Size | Main Performance |
Spray Process |
Applicaitons |
| tubular welding rods | #2 Dia7*400mm 20-30mesh | Excellent wear resistance and impact resistance | Welding |
Surfacing of workpiece surface in metallurgy, construction, grain and oil processing, mining machinery and other industries. |
| #3 Dia6*400mm 30-40mesh | ||||
| #4 Dia 5*400mm 40-60mesh | ||||
| #5 Dia4*400mm 60-80mesh | ||||
| Flexible welding rope | Dia4mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
Wear resistance,Anti-Corrosion | Oxy-acetylene Welding |
Oil bit, stabilizer , geological bit, feed screw etc. |
| Dia6mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
||||
| Dia8mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
Q1: Are you a manufacturer?
Answer: Yes, we are factory founded on 2007.
Q2:Can you give me a discount price?
Answer:Sure,It‘s depends on order quantity.
Q3:How can I get a sample?
Answer:free samples is available,but freight charges will be at your account and the charges will be return to you or deduct from your order in the future.
Q4: How to confirm the Product Quality before placing orders?
Answer:You can get free samples for some products,you only need to pay the shipping cost or arrange a courier to us and take the samples.
You can send us your product specifications and requests,we will manufacture the products accordingly.
Q5: :How do you treat quality complaint?
Answer:First of all, our quality control team will reduce the quality problem to near zero.
In case of there is a real quality problem caused by us, we will send you free goods for replacement or refund your loss.
