| Place of Origin: | China |
|---|---|
| Brand Name: | BD |
| Certification: | ISO9001 |
| Model Number: | BD-1045 |
| Minimum Order Quantity: | 5KG |
| Price: | US$41.3/kg-US$49.30/kg |
| Packaging Details: | 10kg per bottle or 50kg per drum. |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T |
| Supply Ability: | 10 tons per month |
| Particle Size: | 6-8mesh ,20-30mesh ,30-40mesh,40-60mesh ,50-70mesh ,50-140mesh ,60-80mesh ,80-100mesh,100-200mesh,140-325mesh Etc | Wear Resistance: | Excellent |
|---|---|---|---|
| Density: | 14.6g/cm3 Typical Data | Process: | Welding |
| Typical Hardness: | 89 HRC Typical Data | Manufacture: | Sintered And Crushed |
| Material: | WC-6Co,WC-8Co | Shape: | Irregular |
| Highlight: | Abrasion resistance Cemented tungsten carbide grits,Cemented tungsten carbide grits,WC-Co crushed grits |
||

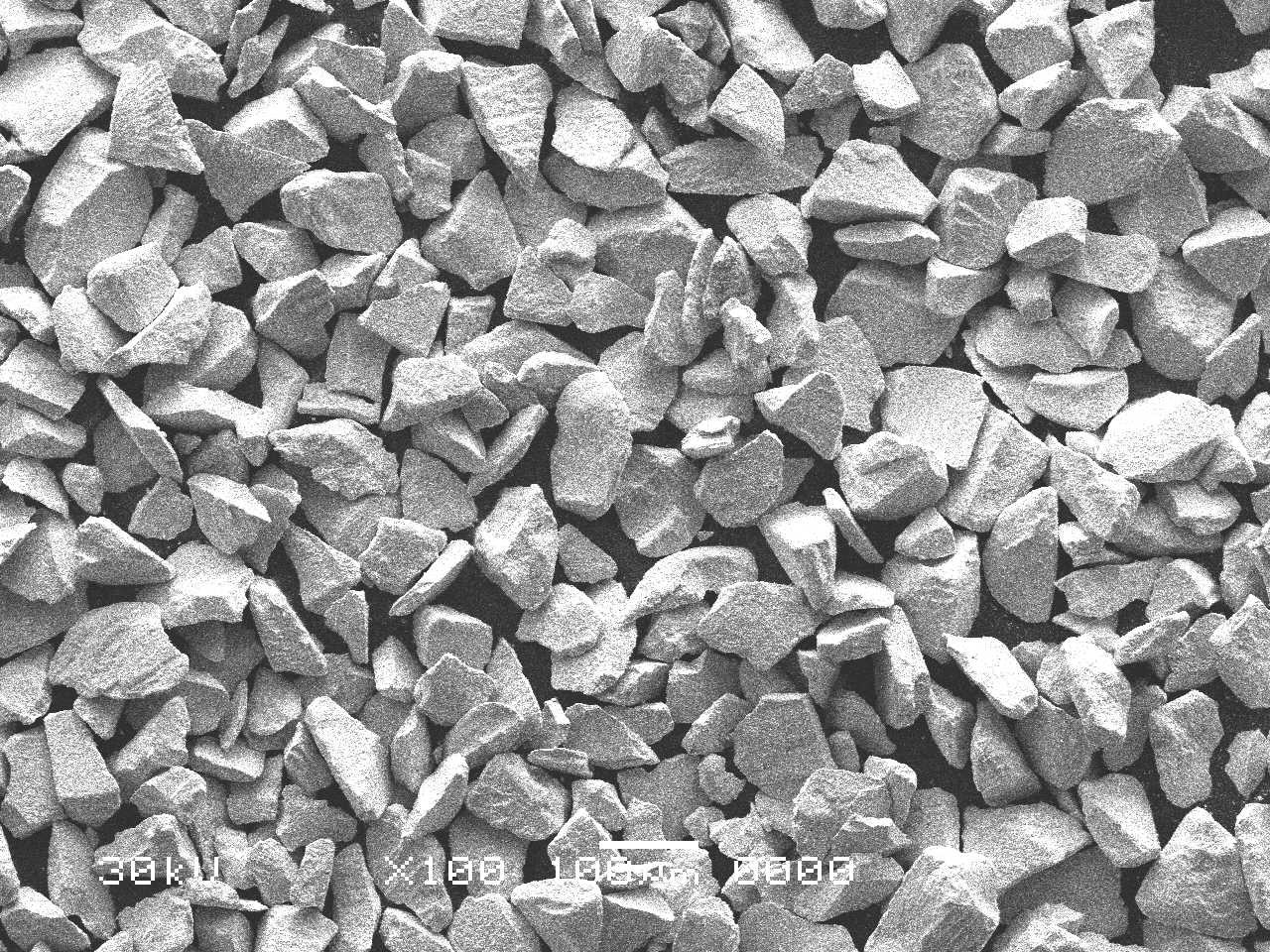

Cemented Tungsten Carbide Grits
Introduction:
Cemented tungsten carbide grits are fully densified, sintered, and crushed tungsten carbide/cobalt hard metal powders. Produced from high-quality material feeds which are low in Ti, Ta, and Nb. These powders have excellent hardness, abrasion resistance, and are easily wettable.
It is used to protect costly parts by hard-facing, such as bulldozer blades, bucket teeth, wood grinding hammers, trencher teeth, and a wide variety of other consumable components.
Equal to:
KENNAMETAL’S KENFACE ,C&M CCG
Chemical composition %:
| W | Ct% | Co% | Fe% | |
| Rest | 5.4-5.9 | 5.5-9.5 | 1max |
Particle size :
| 1.6-3.2mm 1/16''-1/8'' | 6-8mesh | 50-70mesh | 100-200mesh |
| 3.2-4.8mm 1/8''-3/16'' | 20-30mesh | 50-140mesh | 120-170mesh |
| 4.8-6.4mm 3/16''-1/4'' | 30-40mesh | 60-80mesh | 140-325mesh |
| 6.4-8.0mm 1/4''-5/16'' | 40-60mesh | 80-100mesh | -325mesh |
| Other size can be customized | |||
Typical use and application:
