| Place of Origin: | China |
|---|---|
| Brand Name: | BODA |
| Certification: | ISO9001:2015 |
| Model Number: | BD10301 |
| Minimum Order Quantity: | Negotiable |
| Price: | $50-55/kgs |
| Packaging Details: | 50kg/Steel Drum,25kg/Steel Drum,10kg/Bottle,10 or 20 bottles in a pallets |
| Delivery Time: | 7-15days |
| Payment Terms: | Negotiable |
| Supply Ability: | 10 tons/month |
| Classification: | Carbide, Tungsten-based | Chemistry: | 86WC 10Co 4Cr |
|---|---|---|---|
| Manufacture: | Agglomerated And Sintered | Morphology: | Spheroidal |
| Purpose: | Corrosive Wear Resistance | Process: | HVOF, HVAF,Atmospheric Plasma |
| Highlight: | HVOF Flame Spray Powders,WC-10Co-4Cr Flame Spray Powders,WC-10Co-4Cr |
||
HVOF Thermal Spray Powder WC-10Co-4Cr (WC/CO/CR 86/10/4)
Chemicals Compositon:
| Grade | T.C | Co | Cr | Fe | Process |
| BD10301 | 5.0-5.5 | 9.1-10.5 | 3.0-4.5 | ≤0.1 | Agglomerated & Sintered |
Typical Properties :

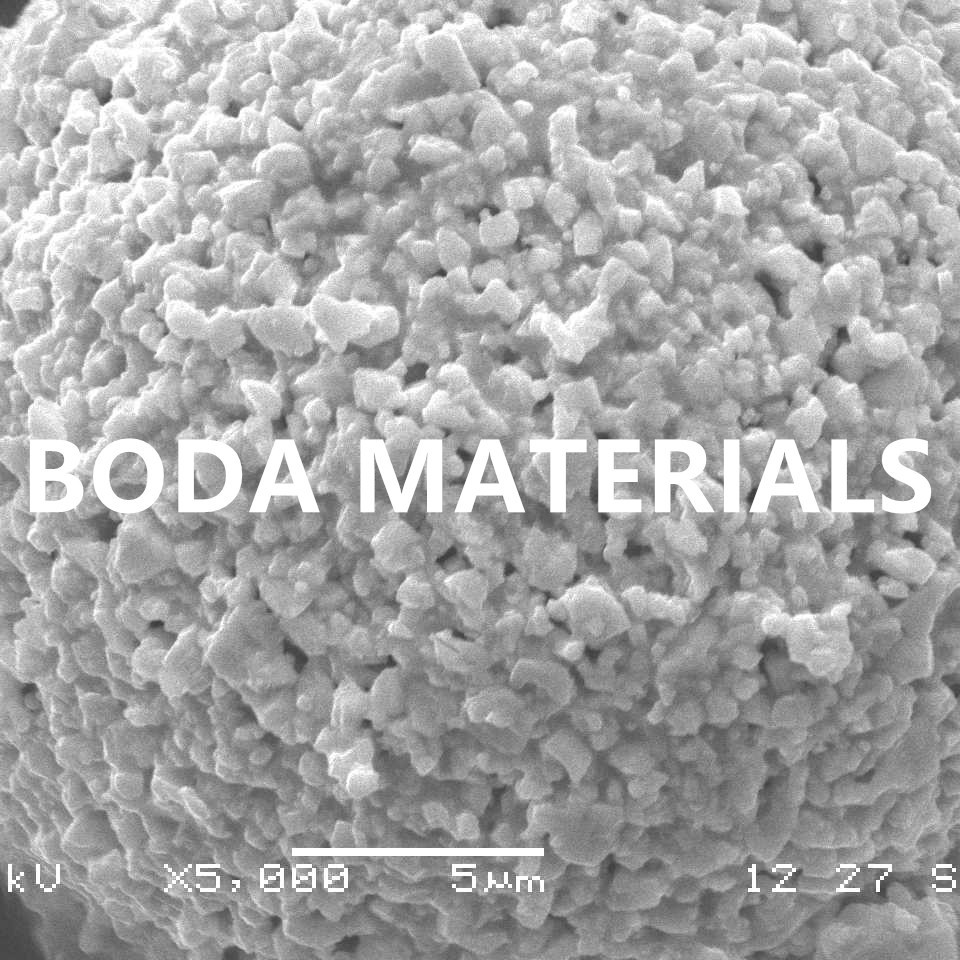

It’s a versatile ,high quality spherical powder,Due to its Cr content of 4%,
this powder should be used for applications where standard WC-Co coating do not meet the requirements regarding corrosion resistance.
The WC-Co-Cr powder can be deposited by PLASMA, gas HVOF and liquid fuel HVOF systems .
Applicaitons:
Our products range of WC-Co series:
| Product | Particle Size | Equal to | Main Performance | Spray Process | Applicaitons |
| WC-10Co-4Cr | 45-15um | Woka 3651 3652 3653 3654 3655 3665 |
Corrosive wear resistance | HVOF,HVAF,Atmospheric Plasma | Landing gears |
| 45-11um | Paper manufactureing rolls,Corrugating rollers | ||||
| 38-10um | Ball,gate and dump valves | ||||
| 25-5um | Hydroturbine buckets | ||||
| WC-12Co | 53-20um | Woka 3101, Woka 3102, Woka 3103, Woka 3105, |
Wear resistance | HVOF,HVAF,Atmospheric Plasma | Steel rolls |
| 45-15um | Corrugating rollers | ||||
| 38-10um | Sucker rod couplings | ||||
| 25-5um | Conveyor screws | ||||
| WC-17Co | 53-20um | Woka 3201 3202 3203 3205 3208 |
Ductile Wear resistance | HVOF,HVAF,Atmospheric Plasma | Landing gears |
| 45-15um | Pump seals | ||||
| 38-10um | Exhaust fans | ||||
| 25-5um | Crushing rollers |
