| Place of Origin: | China |
|---|---|
| Brand Name: | BODA |
| Certification: | ISO9001:2015 |
| Model Number: | BD10301 |
| Minimum Order Quantity: | Negotiable |
| Price: | $50-55/kgs |
| Packaging Details: | 50kg/Steel Drum,25kg/Steel Drum,10kg/Bottle,10 or 20 bottles in a pallets |
| Delivery Time: | 7-15days |
| Payment Terms: | Negotiable |
| Supply Ability: | 10 tons/month |
| Classification: | Carbide, Tungsten-based | Chemistry: | WC Cr Ni 73.0 20.0 7.0 |
|---|---|---|---|

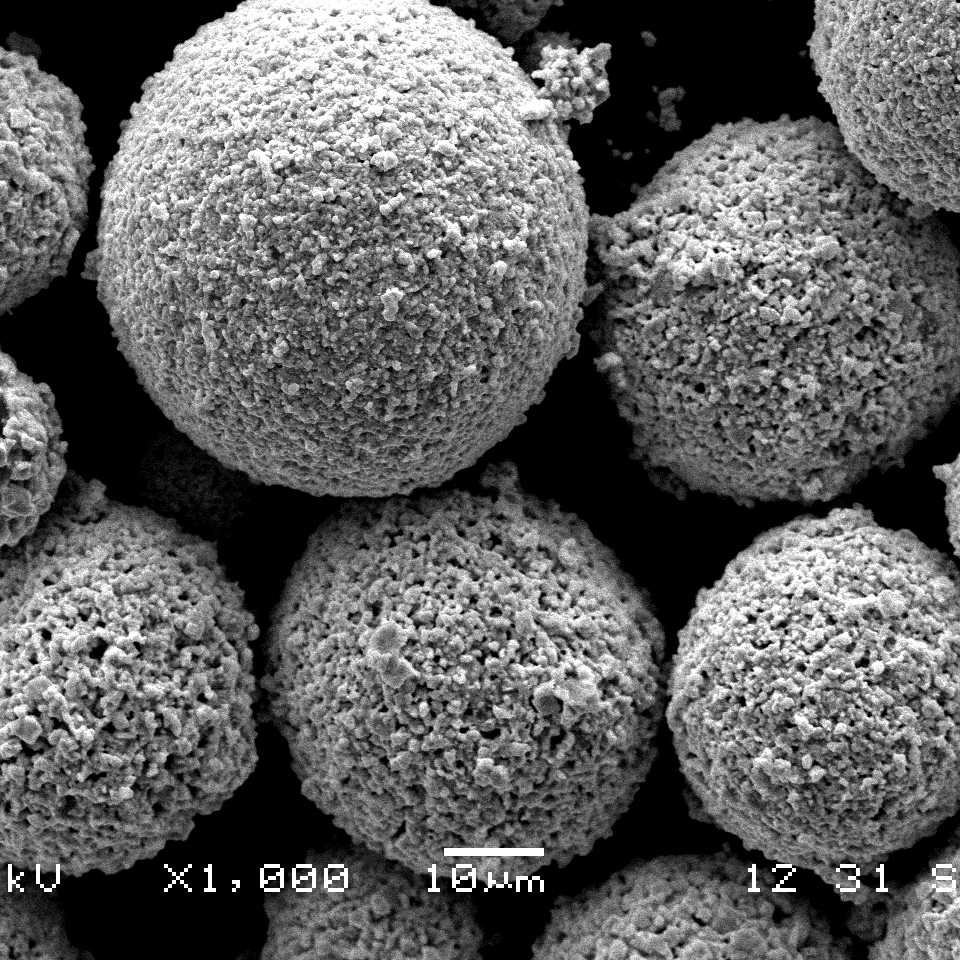

| Manufacture: | Agglomerated And Sintered | Morphology: | Spheroidal |
| Purpose: | Corrosive Wear Resistance | Process: | HVOF, HVAF,Atmospheric Plasma |
| Highlight: | WC 20CrC 7Ni Powder,Agglomerated Tungsten Carbide Powder,Spherical Sintered Tungsten Carbide Powder |
||
Tungsten Carbide Powder WC-Cr-Ni 73-20-7
| Grade | T.C | Ni | Cr | Fe | Process |
| BD-10401 | 5.8-6.4 | 6.0-8.0 | 20.0-23.0 | ≤0.5 | Agglomerated & Sintered |
| Particle Size Micron | Apparent Density g/cm3 | Hall Flow S/50g | Appearance |
| 53-20 | > 4.0 | ≤18.0 | Spherical |
| 45-15 | |||
| 45-11 | |||
| 38-10 |
PRODUCT OVERVIEW
WC-CrC-7Ni 73-20-7 is a tungsten carbide – chromium- nickel powder specifically designed for HVOF systems.
It produces a hard, abrasive and corrosion resistant coating, with a service environment up to 1400° F (760° C).
High chrome like finishes can be obtained by typical grinding or lapping techniques.
WC-CrC-7Ni 73-20-7 is ideal for use in a wide variety of erosive and abrasive wear applications and corrosive environments.
It should be used where added corrosion protection is required versus WC-Co coatings.
APPLICATION:
Our products range of WC-Co series:
| Product | Particle Size | Equal to | Main Performance | Spray Process | Applicaitons |
| WC-10Co-4Cr | 45-15um | Woka 3651 3652 3653 3654 3655 3665 |
Corrosive wear resistance | HVOF,HVAF,Atmospheric Plasma | Landing gears |
| 45-11um | Paper manufactureing rolls,Corrugating rollers | ||||
| 38-10um | Ball,gate and dump valves | ||||
| 25-5um | Hydroturbine buckets | ||||
| WC-12Co | 53-20um | Woka 3101, Woka 3102, Woka 3103, Woka 3105, |
Wear resistance | HVOF,HVAF,Atmospheric Plasma | Steel rolls |
| 45-15um | Corrugating rollers | ||||
| 38-10um | Sucker rod couplings | ||||
| 25-5um | Conveyor screws | ||||
| WC-17Co | 53-20um | Woka 3201 3202 3203 3205 3208 |
Ductile Wear resistance | HVOF,HVAF,Atmospheric Plasma | Landing gears |
| 45-15um | Pump seals | ||||
| 38-10um | Exhaust fans | ||||
| 25-5um | Crushing rollers |
