| Place of Origin: | China |
|---|---|
| Brand Name: | BODA |
| Certification: | ISO9001:2015 |
| Model Number: | BD-P21120 |
| Minimum Order Quantity: | Negotiable |
| Price: | $60-65/kgs |
| Packaging Details: | 50kg/Steel Drum,25kg/Steel Drum,10kg/Bottle,10 or 20 bottles in a pallets |
| Delivery Time: | 7-15days |
| Payment Terms: | Negotiable |
| Supply Ability: | 10 tons/month |
| Classification: | Carbide, Tungsten-based | Chemistry: | WC 10Co 4Cr |
|---|---|---|---|
| Manufacture: | Sinter And Crushed | Purpose: | Corrosion And Wear Resistance |
| Morphology: | Angular / Blocky | Regular Particle Size: | 45-15um,45-20um,45-11um,90-45um |
| Highlight: | Angular Thermal Spray Powders,Crushed Thermal Spray Powders,Sintered WC-10Co-4Cr |
||
WC-10Co-4Cr Sintered And Crushed Type For HVOF Thermal Spray
Chemicals Composition:
| Grade | T.C | Co | Cr | Fe | Process |
| BD-P21120 | 5.0-6.0 | 9.0-11.0 | 3.1-4.9 | ≤1.0 | Sintered & Crushed |
| Particle Size Micron | Apparent Density g/cm3 | Hall Flow S/50g | Appearance |
| 45-11 | ≥4.0 | ≤25.0 | Angular/Blocky |
| 45-15 |

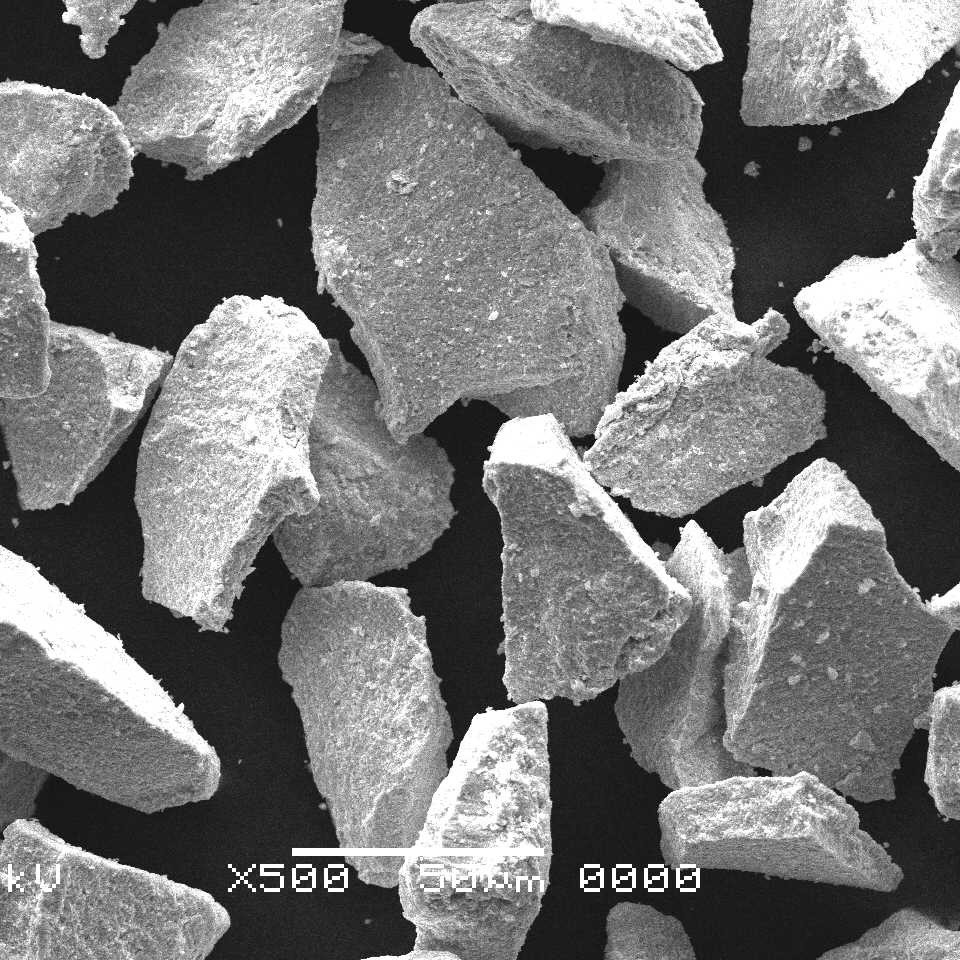

SEM of WC-10Co-4Cr sintered and crushed
Typical Properties and Application For BD-P21120:
Sintered And Crushed WC-10Co-4Cr are typically applied using the HVOF process with excellent erosion and abrasion resistance,
The sintered and crushed morphology generally produces coatings with a higher as-sprayed coating density compared to agglomerated and sintered powders.
This allows the usage of these coatings on high pressure gate valves and other high pressure components.
This class of thermal spray powders is particularly suitable for applications where both wear and corrosion resistance is needed.
They also offer better corrosion and cavitation resistance than tungsten-carbide-cobalt coatings.
These materials also produce excellent thermal sprayed coating alternatives to hard chromium plating
It’s used for Gate valves,Ball valves,Extruder screws and forging dies,Steel industry guide rolls and pins,Hydroelectric turbine components.
Boda HVOF Thermal Spray Powder Products ranges:
| Product | Particle Size | Equal to | Main Performance | Spray Process | Applications |
| WC-10Co-4Cr | 45-15um | Woka 3651 3652 3653 3654 3655 3665 |
Corrosive wear resistance |
HVOF,HVAF, Atmospheric Plasma |
Landing gears |
| 45-11um | Paper manufactureing rolls,Corrugating rollers | ||||
| 38-10um | Ball,gate and dump valves | ||||
| 25-5um | Hydroturbine buckets | ||||
| WC-12Co | 53-20um | Woka 3101, Woka 3102, Woka 3103, Woka 3105, |
Wear resistance |
HVOF,HVAF, Atmospheric Plasma |
Steel rolls |
| 45-15um | Corrugating rollers | ||||
| 38-10um | Sucker rod couplings | ||||
| 25-5um | Conveyor screws | ||||
| WC-17Co | 53-20um | Woka 3201 3202 3203 3205 3208 |
Ductile Wear resistance |
HVOF,HVAF, Atmospheric Plasma |
Landing gears |
| 45-15um | Pump seals | ||||
| 38-10um | Exhaust fans | ||||
| 25-5um | Crushing rollers | ||||
| WC-10Ni | 53-20um | Woka 3301 3302 3303 3304 3305 |
excellent corrosion resistance, abrasion and sliding wear |
HVOF,Plasma spray | ball valves,gate valves,oil field equipment |
| 45-15um | |||||
| 38-10um | radio-active environments | ||||
| WC-12Ni | 45-20um | Woka 3402 3403 3404 3406 |
excellent corrosion resistance, abrasion and sliding wear |
HVOF,Plasma spray | Steeling making |
| 45-15um | Centrifugal Casting | ||||
| 38-10um | Plastic centrifuge | ||||
| WC-15Ni | 53-20um | N/M |
excellent corrosion resistance, abrasion and sliding wear |
HVOF,Plasma spray | Steeling making |
| 45-15um | Centrifugal Casting | ||||
| 38-10um | Plastic centrifuge | ||||
| WC-20Cr3C-7Ni | 53-20um | Woka 3701 3702 3702-1 3703 | excellent oxidation resistance , good erosion,abrasion wear resistance; | HVOF,Plasma spray | iron&steel industry, paper making,pump and valve |
| 45-15um | field of Screw drilling tools | ||||
| 38-10um | chemical equipment in petroleum machinery | ||||
| 25NiCr-Cr3C2 | 53-20um | Woka 7201 7202 7203 7204 7205 7210 |
Excellent sliding,abrasion, erosion/Corrosion,wear resistance, Good cavitation,corrosion resistance. |
HVOF,HVAF, Atmospheric Plasma |
Gas turbine |
| 45-15um | aircraft engine,valve rod,powder generation boiler | ||||
| 38-10um | metallurgical furnace roller and hydraulic valve etc | ||||
| 20NiCr-Cr3C2 | 53-20um | Woka 7101 7102 7103 7104 7105 |
Excellent sliding,abrasion, erosion/Corrisionwear resistance, Good cavitation,corrosion resistance. |
HVOF,HVAF, Atmospheric Plasma |
Gas turbine |
| 45-15um | aircraft engine,valve rod,powder generation boiler | ||||
| 38-10um | metallurgical furnace roller and hydraulic valve etc |
Our Factory and Lab:
Our customer and certificate:
Advantages:
1.100% factory manufacturing and factory direct sales.
2. Competitive price and quality guarantee.
3.Trial order and customized testing sample are welcomed.
4.Independent research and development ability and high efficient production capacity.
5.We have more than 10 years of experience in producing Thermal spray powder,tungsten carbide materials,PTA,Metal Caride.
6.We have through the ISO9001 quality management system certification.
7.We have a professional team and engineer, can solve all the problems you meet .
