| Place of Origin: | China |
|---|---|
| Brand Name: | BODA |
| Certification: | ISO9001:2015 |
| Model Number: | BD10202 |
| Minimum Order Quantity: | Negotiable |
| Price: | $60-65/kgs |
| Packaging Details: | 50kg/Steel Drum,25kg/Steel Drum,10kg/Bottle,10 or 20 bottles in a pallets |
| Delivery Time: | 7-15days |
| Payment Terms: | Negotiable |
| Supply Ability: | 10 tons/month |
| Classification: | Carbide, Tungsten-based | Chemistry: | 88WC 12Co |
|---|---|---|---|
| Manufacture: | Agglomerated And Sintered | Morphology: | Spheroidal |
| Size Of WC: | Fine WC | Regular Partice Size: | 53-20um,45-15um,38-10um,30-5um |
| Highlight: | Thermal Spray HVAF Powders,Ultra Fine HVOF Powders,Ultra Fine WC-12Co |
||
HVAF Utral Fine Therma Spray Powder WC-12Co Used For More Smooth Finished Surface (Utral fine WC/CO 88/12)
Chemicals Compositon:
| Grade | T.C | Co | Fe | Process |
| BD10202 | 5.1-6.0 | 11.0-13.0 | ≤0.1 | Agglomerated & Sintered |
Products Description:

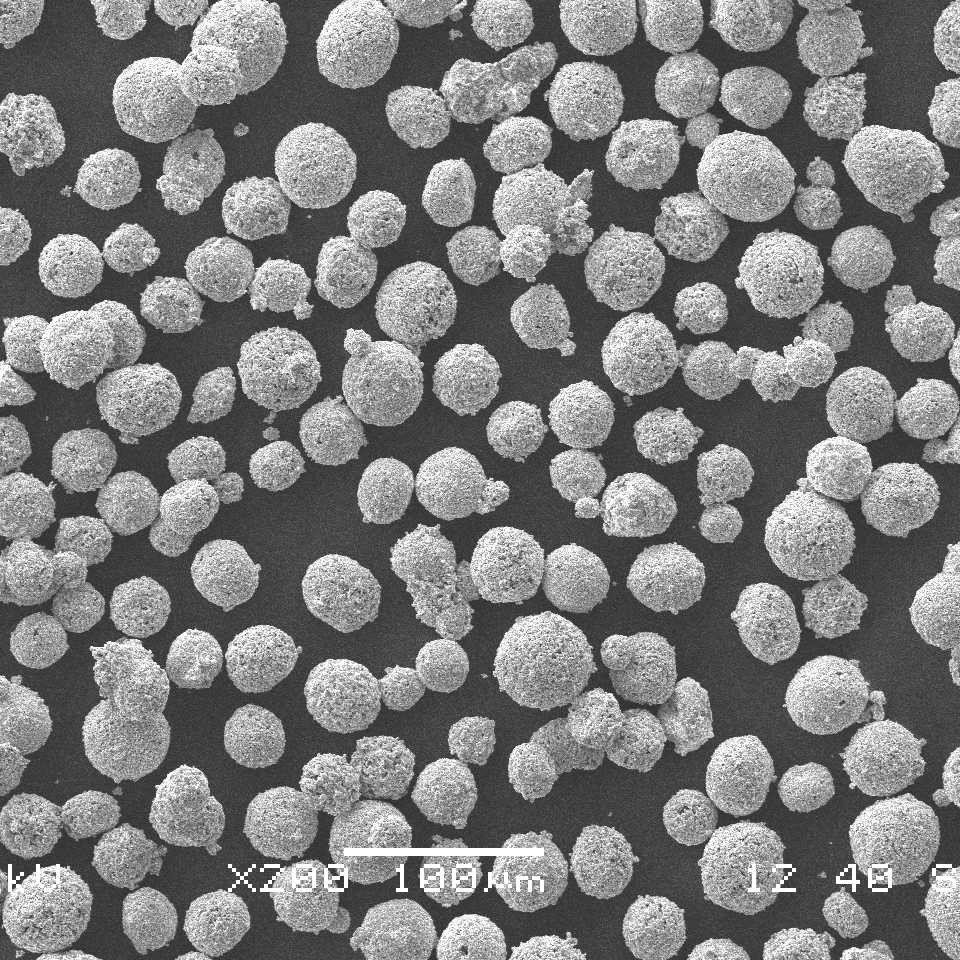

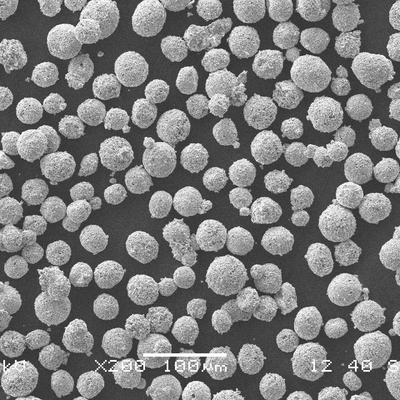

These products are spheroidal powders for thermal spraying,
containing 88 % tungsten carbide as a hard material and a cobalt matrix
that functions as a binder material for the carbide particles.
All products are agglomerated and sintered powders.
Their fine particle size combined with their fine primary carbide grain size produces hard,
well-bonded coatings that are resistant to abrasion, erosion and sliding wear.
This makes these products perfect when surface finishing is too costly,
such as for corrugating rollers or when a very smooth finished surface is needed
Particle size avaiable:
HVAF Process:
53-20um,45-15um,38-10um,30-5um
Our products range of WC-Co series:
| Product | Particle Size | Equal to | Main Performance | Spray Process | Applicaitons |
| WC-10Co-4Cr | 45-15um | Woka 3651 3652 3653 3654 3655 3665 |
Corrosive wear resistance | HVOF,HVAF,Atmospheric Plasma | Landing gears |
| 45-11um | Paper manufactureing rolls,Corrugating rollers | ||||
| 38-10um | Ball,gate and dump valves | ||||
| 25-5um | Hydroturbine buckets | ||||
| WC-12Co | 53-20um | Woka 3101, Woka 3102, Woka 3103, Woka 3105, |
Wear resistance | HVOF,HVAF,Atmospheric Plasma | Steel rolls |
| 45-15um | Corrugating rollers | ||||
| 38-10um | Sucker rod couplings | ||||
| 25-5um | Conveyor screws | ||||
| WC-17Co | 53-20um | Woka 3201 3202 3203 3205 3208 |
Ductile Wear resistance | HVOF,HVAF,Atmospheric Plasma | Landing gears |
| 45-15um | Pump seals | ||||
| 38-10um | Exhaust fans | ||||
| 25-5um | Crushing rollers |
