| Place of Origin: | China |
|---|---|
| Brand Name: | BODA |
| Certification: | ISO9001:2015 |
| Model Number: | BD10301 |
| Minimum Order Quantity: | Negotiable |
| Price: | $50-55/kgs |
| Packaging Details: | 50kg/Steel Drum,25kg/Steel Drum,10kg/Bottle,10 or 20 bottles in a pallets |
| Delivery Time: | 7-15days |
| Payment Terms: | Negotiable |
| Supply Ability: | 10 tons/month |
| Classification: | Carbide, Tungsten-based | Chemistry: | 86WC 10Co 4Cr |
|---|---|---|---|
| Manufacture: | Agglomerated And Sintered | Morphology: | Spheroidal |
| Size Of WC: | Fine WC | Regular Partice Size: | 53-20um,45-15um,38-10um,30-5um |
| Highlight: | HVAF Thermal Spray Powders,WC-10Co-4Cr Thermal Spray Powders,WC-10Co-4Cr HVAF Powder |
||

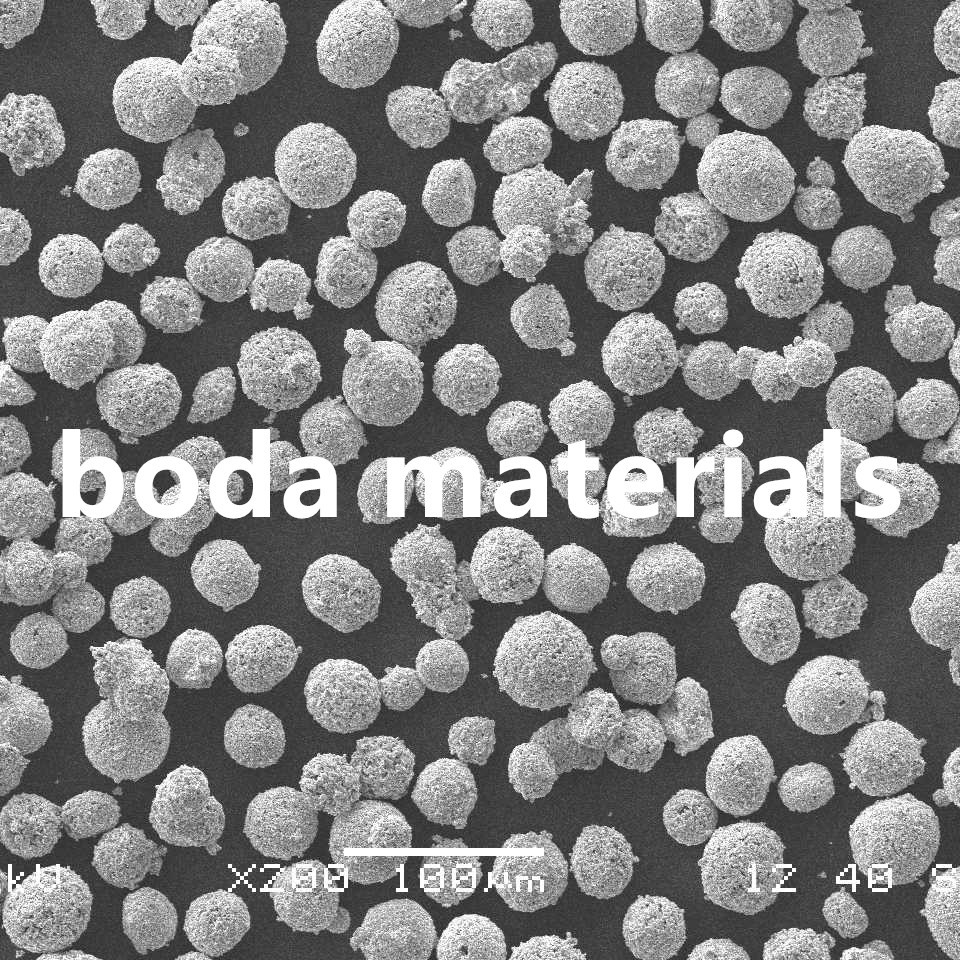

HVAF Utral Fine Therma Spray Powder WC-10Co-4Cr (Utral fine WC/CO/CR 86/10/4)
Chemicals Compositon:
| Grade | T.C | Co | Cr | Fe | Process |
| BD10301 | 5.0-5.5 | 9.1-10.5 | 3.0-4.5 | ≤0.1 | Agglomerated & Sintered |
Particle size avaiable:
HVAF Process:
53-20um,45-15um,38-10um,30-5um
Typical Properties and Applications:
• HVOF, HVAF
• Fine WC
• Max. operating temperature 500 °C
• CoCr matrix shows higher corrosion and abrasion resistance than Co matrix
• Useable in water based solutions and wet corrosive environments
• Smooth coatings with fine microstructure and high bond strengths
• Hard chrome replacement
• Used for paper rolls, gate and ball valves, hydraulic cylinders, compressor
shafts, mud pump rotors
Our products range of WC-Co series:
| Product | Particle Size | Equal to | Main Performance | Spray Process | Applicaitons |
| WC-10Co-4Cr | 45-15um | Woka 3651 3652 3653 3654 3655 3665 |
Corrosive wear resistance | HVOF,HVAF,Atmospheric Plasma | Landing gears |
| 45-11um | Paper manufactureing rolls,Corrugating rollers | ||||
| 38-10um | Ball,gate and dump valves | ||||
| 25-5um | Hydroturbine buckets | ||||
| WC-12Co | 53-20um | Woka 3101, Woka 3102, Woka 3103, Woka 3105, |
Wear resistance | HVOF,HVAF,Atmospheric Plasma | Steel rolls |
| 45-15um | Corrugating rollers | ||||
| 38-10um | Sucker rod couplings | ||||
| 25-5um | Conveyor screws | ||||
| WC-17Co | 53-20um | Woka 3201 3202 3203 3205 3208 |
Ductile Wear resistance | HVOF,HVAF,Atmospheric Plasma | Landing gears |
| 45-15um | Pump seals | ||||
| 38-10um | Exhaust fans | ||||
| 25-5um | Crushing rollers |
Our Workshop and Lab:
Q1: Are you a manufacturer?
Answer: Yes, we are factory founded on 2007.
Q2:Can you give me a discount price?
Answer:Sure,It‘s depends on order quantity.
Q3:How can I get a sample?
Answer:free samples is available,but freight charges will be at your account and the charges will be return to you or deduct from your order in the future.
Q4: How to confirm the Product Quality before placing orders?
Answer:You can get free samples for some products,you only need to pay the shipping cost or arrange a courier to us and take the samples.
You can send us your product specifications and requests,we will manufacture the products accordingly.
Q5: :How do you treat quality complaint?
Answer:First of all, our quality control team will reduce the quality problem to near zero.
In case of there is a real quality problem caused by us, we will send you free goods for replacement or refund your loss.
