| Place of Origin: | China |
|---|---|
| Brand Name: | Shoulder Powder for PDC Drill Bit |
| Certification: | ISO9001:2015 |
| Model Number: | Cystalline Tungsten Powder |
| Minimum Order Quantity: | 50kgs |
| Price: | $50-60.0/kgs |
| Packaging Details: | 50kgs/Drum |
| Delivery Time: | 7-10days |
| Payment Terms: | Negotiation |
| Supply Ability: | 20tons/Month |
| Chemical Formula: | W | Purity: | 99.8% |
|---|---|---|---|
| Appearance: | Gray Powder | Hall Flow Rate: | ≤12.0 S/50g |
| Apparent Density: | 6.5-9.0g/cm3 | Particle Size: | 60-325mesh |
| Product Name: | Shoulder Powder For PDC Drill Bit | ||
| Highlight: | 99.8% Machinable Shoulder Powder,Tungsten Metal Shoulder Powder,325mesh Tungsten Metal Powder |
||
Machinable Shoulder Powder/Crystalline Tungsten Powder For Diamond Bits
| Chemical Composition ( Wt,%) | |||||||
| W | Fe | O | Mo | Ni | Cr | Co | Cu |
| >99.7 | <0.1 | <0.06 | <0.01 | <0.04 | <0.015 | <0.01 | <0.01 |
| Typical information | |||||||
| Products | Particle Size | Apparent Density (g/cm3) | Hall Flow Rate (S/50g) | ||||
| Tungsten Metal Powder | 60-325mesh | -250+45um | 6.5-9.0 | ≤12.0 | |||
| 60-270mesh | -250+53um | ||||||
| 100-325mesh | -150+45um | ||||||
| 140-325mesh | -106+45um | ||||||

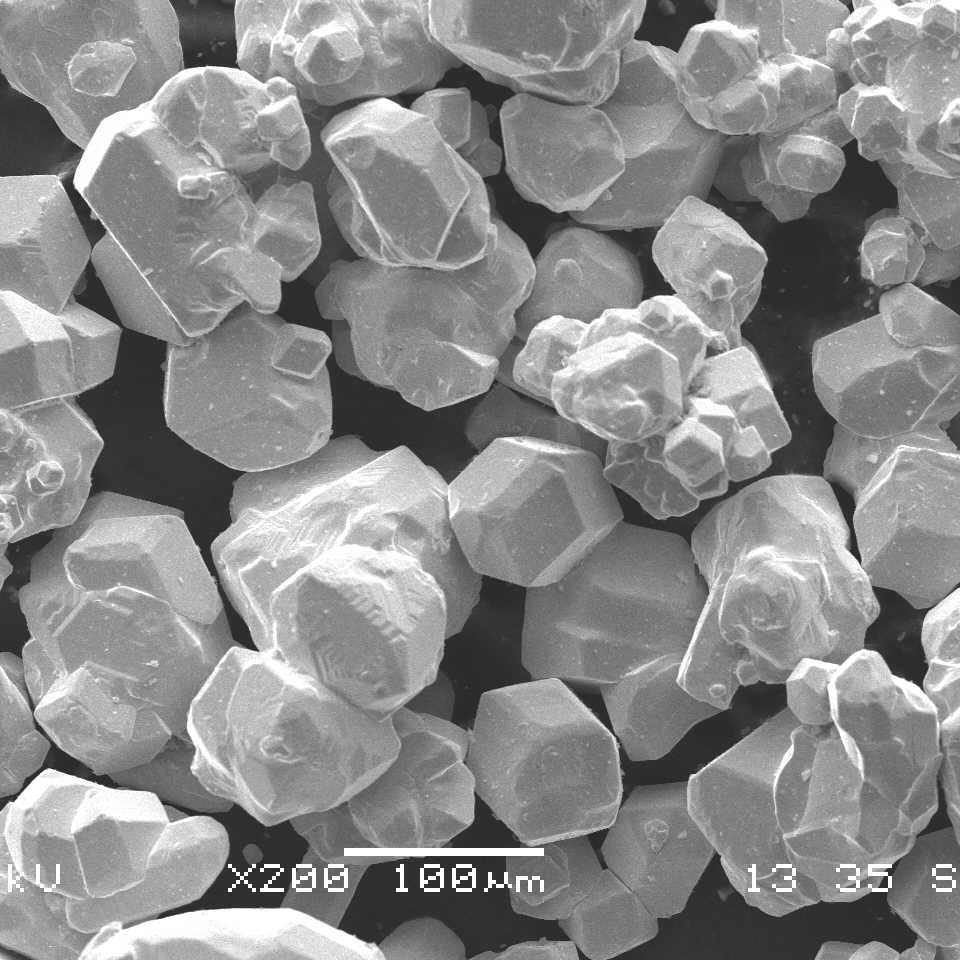

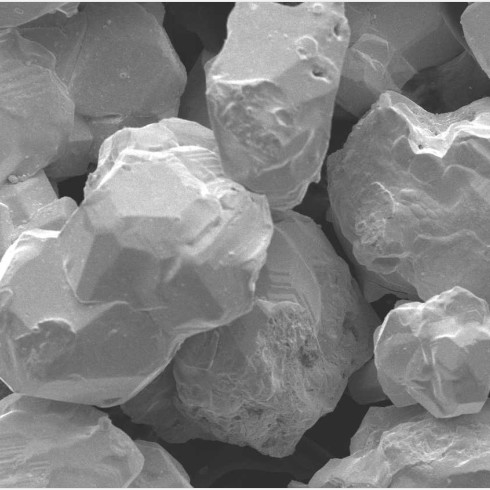

Crystalline tungsten powder is a type of high purity tungsten powder, which is a light gray tungsten carbide powder with fully carbonized and dense microstructure.
It has homogeneous structure and excellent thermal stability.
The powder is made from a precise selection of raw materials and special alloying.
It is widely used in multiple fields, such as petroleum drilling diamond bits, oil perforation pills, high-temperature combustion chamber spray coatings, and high-temperature resistant parts coatings. Additionally, it is also used in intermediate frequency furnace tungsten crucibles.
High Density: Crystalline tungsten has one of the highest densities among metals, making it an ideal choice for applications that require weight or mass concentration. Its high density enables it to be used as ballast weights in aircraft, projectiles, and other systems where precise balance is crucial.
Refractory Properties: Tungsten has excellent refractory properties, meaning it can withstand high temperatures without melting or deforming. This characteristic makes it suitable for use in high-temperature applications such as furnace components, rocket nozzles, and crucibles for melting and casting metals.
Excellent Machinability: Despite its exceptional hardness, crystalline tungsten can be machined and fabricated into various shapes and forms. Its machinability allows for the production of intricate components and precise parts used in industries such as aerospace, automotive, and mining.
Low Thermal Expansion: Crystalline tungsten exhibits low thermal expansion, meaning it expands and contracts minimally with changes in temperature. This property ensures dimensional stability, making it valuable for applications where precision and consistency are essential, such as in precision instruments and scientific equipment.
Environmental Compatibility: Tungsten is considered an environmentally friendly material due to its non-toxic nature and high recyclability. It is free from harmful substances and can be easily recycled and reused, contributing to sustainable manufacturing practices.
Versatility: Crystalline tungsten products find applications in a wide range of industries including aerospace, defense, electronics, energy, mining, and healthcare. They are used in diverse applications such as light bulb filaments, electrical contacts, X-ray shielding, drilling tools, and vibration-damping components.
Longevity and Reliability: Thanks to its exceptional strength, durability, and resistance to corrosion and wear, crystalline tungsten products have a long service life and offer excellent reliability in demanding environments. This makes them a preferred choice for critical and high-performance applications where reliability is paramount.
Overall, crystalline tungsten products possess a unique combination of properties that make them highly desirable and versatile materials across industries. Their high density, refractory properties, machinability, low thermal expansion, environmental compatibility, and reliability contribute to their widespread use and importance in various applications.
| Technical Parameter | Value |
|---|---|
| Product Name | Shoulder Powder For PDC Drill Bit |
| Purity | 99.8% |
| Particle Size | 60-325mesh |
| Appearance | Gray Powder |
| Apparent Density | 6.5-9.0g/cm3 |
| Chemical Formula | W |
| Hall Flow Rate | ≤12.0 S/50g |
| High Purity Tungsten Powder | Yes |
| Tungsten Powder | Yes |
| Crystalline Tungsten Powder | Yes |
Crystalline tungsten products have a multitude of uses in different industries due to their wide range of properties.
In the electrical and electronics sector, they are used to make filaments for incandescent lamps, cathodes for electron emitters, and electrical contacts due to their high conductivity and stability.
Industrial sectors such as mining and metalworking also find crystalline tungsten products desirable, as their exceptional hardness and wear resistance makes them an ideal choice for industrial cutting tools and parts.
In aerospace and defense, crystalline tungsten products are essential components due to their immense density.
Whether it be ballast weights, counterweights, or gyroscopes, their density gives them an unparalleled advantage.
Radiation shielding is another key application, as they can serve to protect against dangerous X-rays and gamma rays in medical and industrial settings.
Moreover, their exceptional refractory properties make them invaluable for applications that require high-temperatures, including furnace components and rocket nozzles.
The extensive range of uses for crystalline tungsten illustrates its versatility: from electrical and electronics to aerospace and defense, its ability to withstand a multitude of pressures and temperatures has granted it a place in many different industries.
Its continual contribution to technological advancements and improved performance shows its potential and uniqueness as a material.
We provide high-quality Tungsten Metal Powder with ISO9001:2015 certification.
Our Shoulder Powder for PDC Drill Bit is made with 99.8% purity and is available in Cystalline Tungsten Powder form.
We provide Metal Carbide Powder with a minimum order quantity of 50kgs and the price of our product ranges from $50-60.0/kgs.
The packaging of the product is 50kgs/Drum and the delivery time is 7-10days.
We accept payment through Negotiation.
Our Supply Ability is 20tons/Month.
Tungsten metal powder is packaged and shipped in a variety of ways depending on the customer's needs.
Generally, the powder is sealed in moisture-resistant bags to ensure it is not exposed to the elements, and then packaged in steel drums. The steel drums are then placed on pallets and shrinkwrapped to protect them during transport.
The pallets are then loaded onto a truck or other shipping vessel for delivery.
