| Place of Origin: | China |
|---|---|
| Brand Name: | Shoulder Powder for PDC Drill Bit |
| Certification: | ISO9001:2015 |
| Model Number: | Cystalline Tungsten Powder |
| Minimum Order Quantity: | 50kgs |
| Price: | $48-55.0/kgs |
| Packaging Details: | 50kgs/Drum |
| Delivery Time: | 7-10days |
| Payment Terms: | Negotiation |
| Supply Ability: | 15tons/Month |
| Purity: | 99.8% | Chemical Formula: | W |
|---|---|---|---|
| Product Name: | Shoulder Powder For PDC Drill Bit | Apparent Density: | 6.5-9.0g/cm3 |
| Particle Size: | 60-325mesh | Appearance: | Gray Powder |
| Hall Flow Rate: | ≤12.0 S/50g | ||
| Highlight: | Drill Bit Crystalline Tungsten Powder,PDC Drill Bit Shoulder Powder,99.8% Crystalline Tungsten Powder |
||

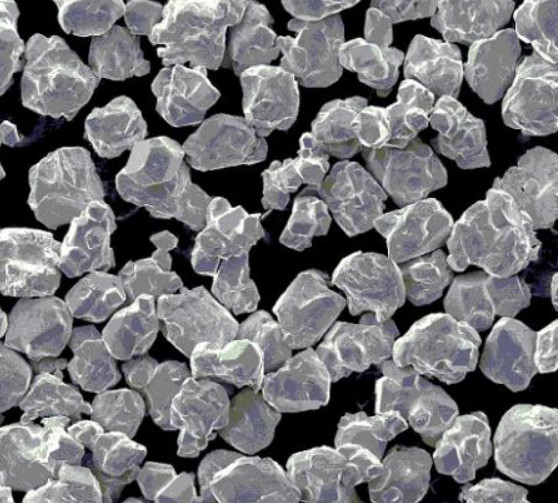

Crystalline Tungsten Powder
| Grade | CTP | |
|---|---|---|
| main content% | W | >=99.8 |
| Impurity Content% Max | Mo | <0.01 |
| Fe | <0.10 | |
| Al | 0.005 | |
| Ni | <0.04 | |
| O | <0.060 | |
| Cu | <0.01 | |
| Cr | ||
| Co | ||
| Particle sizes specs | apparent density | 7.3-8.9g/cc |
| vibrating density | 9.0-10.5g/cc | |
| hall flow rate | <=12s/50g | |
| Seive size: mesh | for diamond drill | -60/+325, |
| for shoot bomb in petroleum exploitation | -200/325 | |
| for surface spray | -200/+325 |
Crystalline tungsten powder is a kind of high purity tungsten powder with a fully carbonized and dense light gray tungsten carbide.
It has a homogeneous micro-structure as well as an excellent thermal stability.
This powder is specially made with a precise selection of raw material and alloying, making it widely used in different areas.
Crystalline tungsten powder is used as the raw material of oil perforation pills for petroleum drilling diamond bits.
Moreover, it is also used for the combustion chamber spraying coating and coating for high temperature resistance parts, and intermediate frequency furnace tungsten crucible.
| Property | Value |
|---|---|
| Product Name | Shoulder Powder For PDC Drill Bit |
| Purity | 99.8% |
| Apparent Density | 6.5-9.0g/cm3 |
| Chemical Formula | W |
| Hall Flow Rate | ≤12.0 S/50g |
| Particle Size | 60-325mesh |
| Appearance | Gray Powder |
| Keywords | Crystalline Tungsen Powder, High purity Tungsten Powder, High purity Tungsten Powder for PDC Drill Bit |
Crystalline tungsten products are highly valued in many industries due to their wide range of applications.
In the electrical and electronics industry, they are used in the production of filaments for incandescent lamps, cathodes for electron emitters, and electrical contacts that need high conductivity and stability.
The exceptional hardness and wear resistance of crystalline tungsten make it the perfect choice for cutting tools such as drills and milling cutters and for wear-resistant parts in industries like mining and metalworking.
Furthermore, crystalline tungsten is utilized in the aerospace and defense industry because of its high density.
It is employed in the manufacturing of ballast weights, counterweights, and gyroscopes. Additionally, this product is well-suited for radiation shielding in medical and industrial settings, providing protection against X-rays and gamma rays.
Crystalline tungsten has excellent refractory properties that make it ideal for high-temperature applications as found in furnace components and rocket nozzles.
Overall, the versatility of crystalline tungsten products offers numerous advantages in critical industries and applications, making significant contributions to technological advancements and improved performance.
We provide customized service for Tungsten Metal Powder, with following properties:
Our Metal Carbide Powder is of high purity and widely used for PDC Drill Bit.
Tungsten metal powder is generally supplied in drums and containers. The packaging materials used depend on the type of product and the customer's requirements.
The drums and containers are usually fitted with tamper-evident seals to provide an extra layer of security and to ensure that the contents have not been compromised.
The drums and containers are also labeled with product-specific information, such as the type of powder, the weight, the manufacturer, and the expiration date.
The drums and containers are then placed into larger shipping containers, such as wooden crates or boxes, for added protection during shipping.
The containers are then secured and sealed with a tamper-evident seal.
The shipping containers are labeled with product-specific information, such as the type of powder, the weight, the manufacturer, and the destination.
