Advanced Spherical Cast Tungsten Carbide - Hardness 2700 – 3100 HV0.1

Product Description:

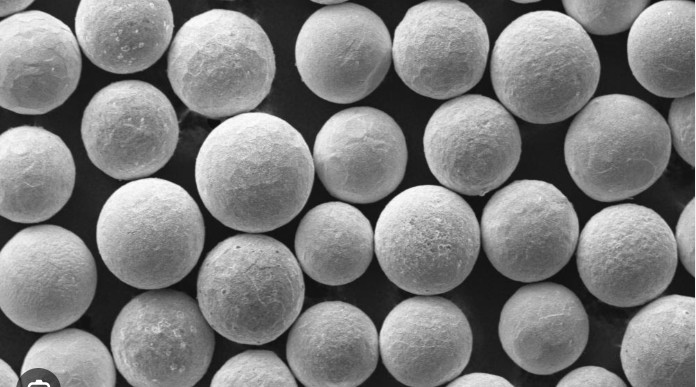

Spherical Cast Tungsten Carbide Powder

Spherical cast tungsten carbide dark gray particles which is made by ultra high-temperature spheroidization or gas atomization process,is dendritic crystal composed of WC and W2C and has high melting point(2525 ℃) high hardness(2700HV0.1),high feather structure,chemicalstability,excellent flowability,high microhardness and high wear corrosion resistance.

The products are used for the preparation of diamond of oil drill bit matrix materials,Plasma (PTA)surfacing materials,spray welding materials and cemented carbide wear-resistant electrode(wire)etc.and widely used in the oil drill bit,PDC drill tool and other melting,spraying(Welding),and surfacing products,mainly used in the wear-resistant surface pre-reinforcement.

Thanks to the spherical shape of this particular compound, it is perfect for providing layers of protection in different environments, especially for moving parts.

In addition, it is also often employed in the manufacturing of more complex components where additive processes are used.

As a result, the components achieve greater performance while costing less.

Another important advantage of spherical cast tungsten carbide is its versatility.

It can be applied to different substrates, including metals, plastics, and carbides.

A variety of machining operations and thermal treatments can also be employed to modify its physical properties while still maintaining superior performance.

Features:

Spherical cast tungsten carbide offers various exceptional features.

Not only dose it rank among the hardest materials available, but its spherical shape also promotes excellent flowability.

What’s more, it is widely renowned for its superior wear resistance; withstand up to high levels of abrasion, erosion, and impact. Consequently, it is often used in critical applications requiring extended service life and reducing downtime.

The unique spherical shape of particles of spherical cast tungsten carbide provides distinct advantages, which facilitate its diverse range of applications.

The spherical shape of the particles offers excellent flowability, ensuring uniform distribution and consistent coverage when applied a coating or incorporated into composite materials.

Furthermore, its exceptional hardness enables it to withstand abrasive wear and impact.

With such properties, spherical cast tungsten carbide is highly suitable for a variety of demanding applications.

Technical Parameters:

Benefits of Spherical Cast Tungsten Carbide:

Spherical cast tungsten carbide stands out for providing durable wear resistance, leading to extended service life for components and surfaces.

This means less downtime and maintenance costs, with fewer replacements needed, and improved overall performance in wear-intensive applications.

The spherical shape of the particles allows for versatile application across many industries and processes.

This includes coating deposition, welding, and additive manufacturing.

The use of Spherical Cast Tungsten Carbide can reduce costs, as the extended service life can lead to significant savings.

Applications:

Wear Protection Solutions: Spherical cast tungsten carbide is widely used in wear protection applications, such as coating surfaces exposed to abrasive wear, which is commonly used in mining tools, oil and gas tools, and industrial machinery components.

Hardfacing and Welding: The spherical cast tungsten carbide particles are also useful in hardfacing and welding processes, thus increasing the wear resistance of components and lengthening their service life.

This can be especially helpful in applications requiring both wear and impact.

Additive Manufacturing: Spherical cast tungsten carbide is applied in additive manufacturing processes such as powder bed fusion for making complex and wear-resistant components with precision and accuracy.

Composite Materials: The use of tungsten carbide particles being blended with other materials, such as metal or polymers, is creating composite materials with improved wear resistance.

These composite materials can be utilized in a variety of industries, such as tooling, aerospace, and automotive.

Customization:

Packing and Shipping:

Packaging and Shipping for Spherical Cast Tungsten Carbide:

• The Spherical Cast Tungsten Carbide will be packaged in a sealed package.
• For transportation and delivery, we will use professional shipping services.
• The goods will be insured for safety during transportation.
• We will provide tracking information after the goods have been shipped.
