| Place of Origin: | China |
|---|---|
| Brand Name: | BODA |
| Certification: | ISO9001:2015 |
| Model Number: | Spherical Cast Tungsten Carbide |
| Minimum Order Quantity: | 50kgs |
| Price: | $55-$60.0/kg |
| Packaging Details: | 50kgs/Drum |
| Delivery Time: | 7-10days |
| Payment Terms: | Negotiation |
| Supply Ability: | 10tons/Month |
| Hardness: | 2700 – 3100 HV0.1 | Machinability: | Good |
|---|---|---|---|
| Material: | Tungsten Carbide | Product Name: | Spherical Cast Tungsten Carbide |
| Manufacture: | Fused, Crushed And Plasma Densified | Shape: | Spherical |
| Apparent Density: | 9.0 – 11.0 G/cm3 | ||
| Highlight: | Spherical Cast WC,Spherical Cast WC 3100 HV0.1,Spherical Cast WC 2700 HV0.1 |
||
| Chemical Composition ( Wt,%) | |||||||
| W | T.C | F.C | Fe | Co+Ni+Mo | Ti+Nb+Ta | Cr | V |
| 95-96 | 3.7-4.2 | < 0.08 | <0.5 | <0.2 | <0.2 | <0.1 | < 0.05 |
| Typical information | |||||||
| Products | Particle Size | Hardness (HV 0.1) | Apparent Density (g/cm3) | Tap Density (g/cm3 ) | Melt Point ℃ | ||
| Spherical Cast WC | 40-70mesh | -425+212um | >2700 | 9.0-11.0 | 9.5-10.5 | 2525 | |
| 60-80mesh | -250+180um | ||||||
| 60-100mesh | -250+150um | ||||||
| 100-200mesh | -150+75um | ||||||
| 100-270mesh | -150+53um | ||||||
| 140-325mesh | -106+45um | ||||||

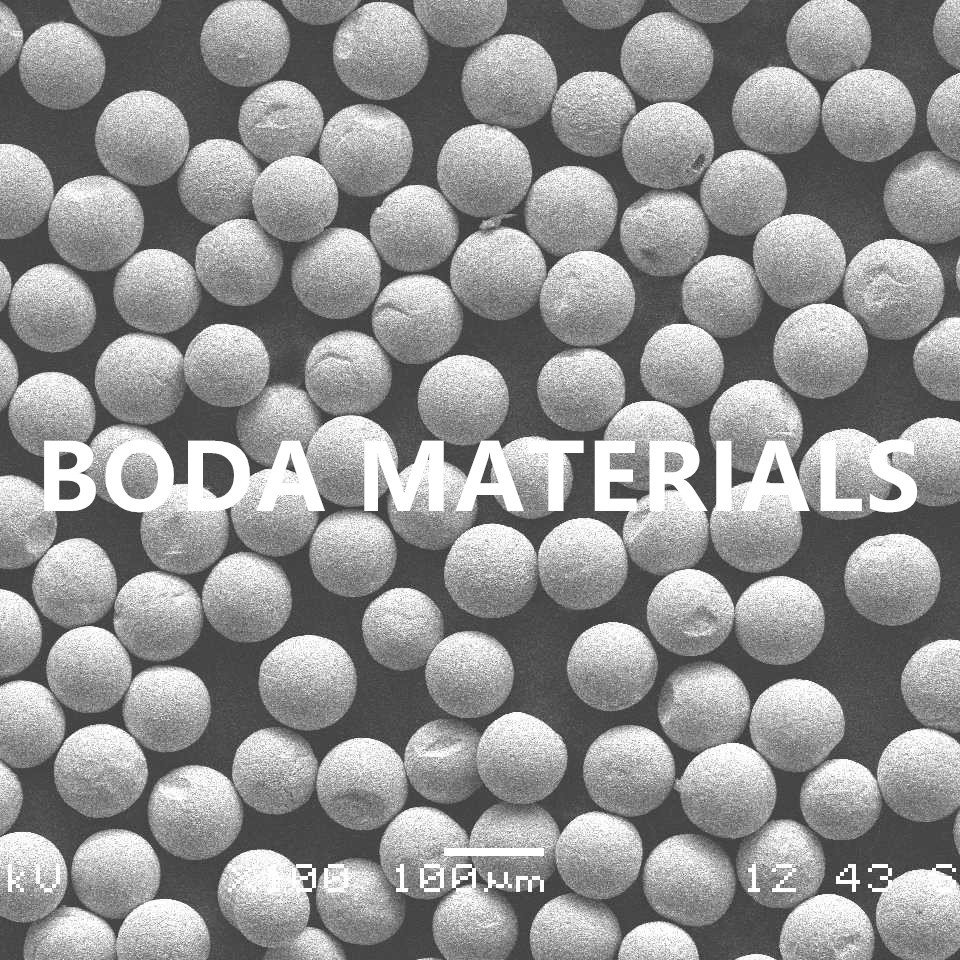

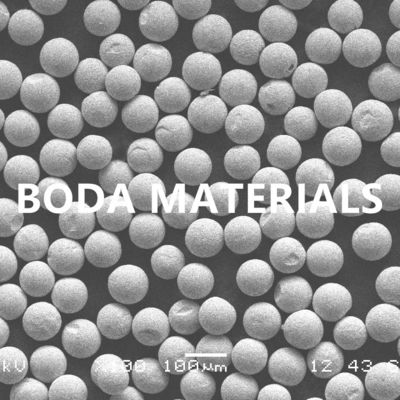

Spherical cast tungsten carbide is a specialized material with extraordinary properties.
It boasts exceptional hardness and wear resistance, coupled with a unique spherical shape. Owing to such remarkable qualities, it is widely used in a variety of industries.
These include wear protection, hardfacing, additive manufacturing, and composite materials.
Utilizing the features of spherical cast tungsten carbide imparts many benefits to industries.
Firstly, it increases the service life expectancy of components significantly, as the material is exceptionally durable.
Furthermore, its spherical shape provides enhanced performance and versatility.
Cost savings can also be achieved by using this material, due to its versatile functions.
Spherical cast tungsten carbide is among the hardest materials available, making it suitable for extremely demanding applications.
This exceptional hardness manifests in superior wear resistance properties, protecting coated parts and composite materials from abrasion, erosion, and impact.
In addition to providing protection, the spherical shape of the particles promotes uniform distribution and excellent flowability when used as a coating.
Percentage reduction in frictional forces is another distinct advantage, which leads to improved wear and machining performance.
The use of spherical cast tungsten carbide offers a number of notable benefits for industries that require wear-resistant solutions.
Firstly, it offers extended service life for components and surfaces, reducing downtime and the need for frequent replacements, as well as associated maintenance costs.
Moreover, the hardness and wear resistance of this material contribute to enhanced performance in wear-intensive applications, improving reliability and productivity.
The spherical shape of the particles also enables easy incorporation into various processes, allowing for versatile application across different industries.
Last but not least, this type of tungsten carbide offers cost savings, as the extended service life and minimized downtime help achieve significant savings in the long-term.
Spherical cast tungsten carbide can serve various protection functions to extend the service life of components.
It can be applied as a coating on surfaces exposed to abrasive wear, such as mining tools and industrial machinery components.
Furthermore, it can be incorporated into hardfacing and welding processes, and utilized in additive manufacturing processes like powder bed fusion to create complex and wear-resistant components.
Additionally, spherical cast tungsten carbide particles can be blended with other materials to form composite materials with enhanced wear resistance.
These composite materials have various commercial applications, such as in aerospace, automotive and tooling industries.
Brand Name: BODA
Model Number: Spherical Cast Tungsten Carbide
Place of Origin: China
Certification: ISO9001:2015
Minimum Order Quantity: 50kgs
Price: $55-$60.0/kg
Packaging Details: 50kgs/Drum
Delivery Time: 7-10days
Payment Terms: Negotiation
Supply Ability: 10tons/Month
Machinability: Good
Manufacture: Fused, Crushed And Plasma Densified
Apparent Density: 9.0 – 11.0 G/cm3
Hardness: 2700 – 3100 HV0.1
Material: Tungsten Carbide
Our Spherical Cast Tungsten Carbide service offers custom-manufactured, spherical carbide components designed to meet the exact needs of your application.
Our laser cladding powder is used to create precision parts that provide superior performance in a wide range of applications.
We offer a variety of sizes, shapes, and compositions to meet your needs, and our experienced team can work with you to ensure your project is completed on time and on budget.
Packaging and Shipping of Spherical Cast Tungsten Carbide:
The product is packaged in sealed plastic bags which are placed in steel durm with adequate cushioning material.
The steel durms are securely sealed with plastic straps and then loaded into pallets.
The pallets are then securely shrink-wrapped,The shipping method is depending on the needs of customers.
