| Place of Origin: | China |
|---|---|
| Brand Name: | Spherical Cast Tungsten Carbide |
| Certification: | ISO9001:2015 |
| Model Number: | 40-70mesh 60-80mesh 60-100mesh 100-200mesh 100-270mesh 140-325mesh |
| Minimum Order Quantity: | Negotiable |
| Price: | $55-60/kgs |
| Packaging Details: | Materials packed in double plastic bag,50kg per drum,10-20drums packed in a pallet |
| Delivery Time: | 5-8working days |
| Payment Terms: | T/T |
| Material: | Tungsten Carbide | Shape: | Spherical |
|---|---|---|---|
| Machinability: | Good | Apparent Density: | 9.0 – 11.0 G/cm3 |
| Product Name: | Spherical Cast Tungsten Carbide | Manufacture: | Fused, Crushed And Plasma Densified |
| Hardness: | 2700 – 3100 HV0.1 | ||
| Highlight: | Industrial Spherical Cast Tungsten Carbide,11.0G/cm3 Spherical Cast Tungsten Carbide,Crushed Spherical Tungsten Powder |
||

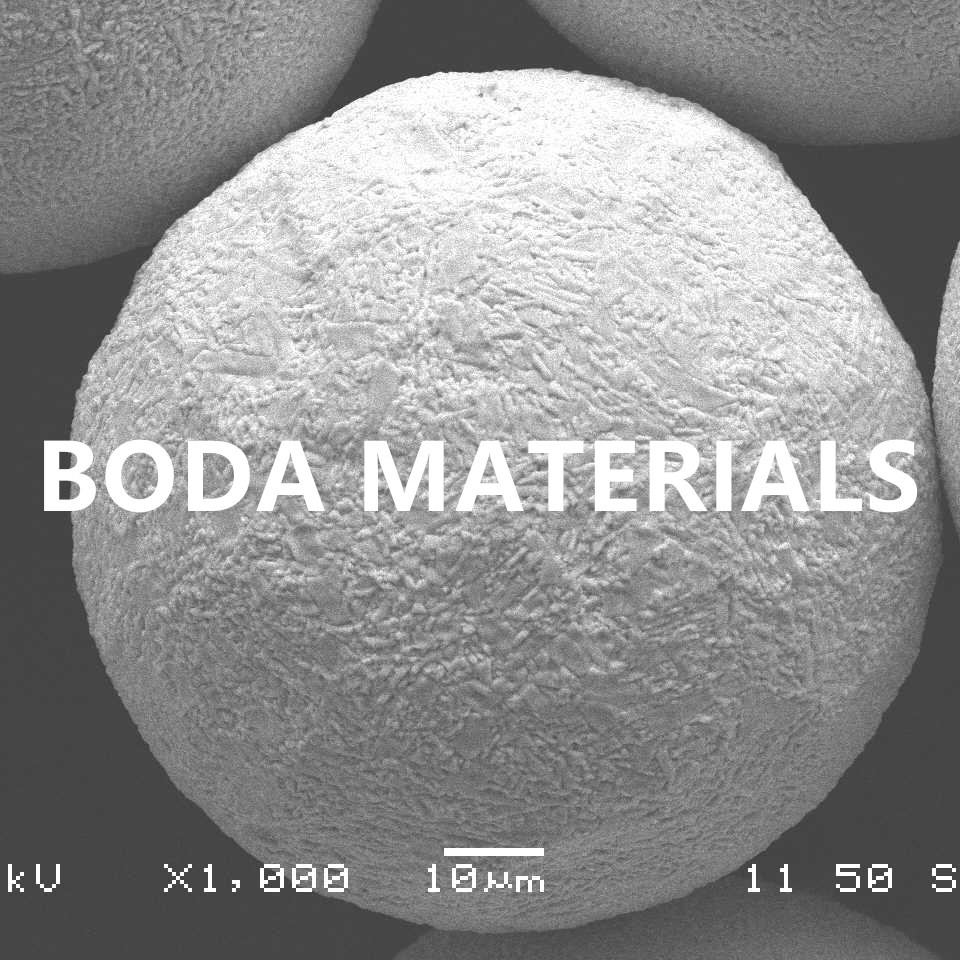

Spherical Fused Tungsten Carbides (CTC-S)
Spherical Fused Tungsten Carbides (CTC-S) are quite unique. They are a type of tungsten carbide powder that is formed in a spheroidal shape. This happens when the melting process occurs and has made them one of the most wear resistant fused tungsten carbide products available. These materials were made in order to be used as the hard phase constituent in a surface that offers good wear resistance.
Depending on the surfacing process, a few different options for creating this hard surface exist. It may work better in some situations to blend the material with self-fluxing alloys or use it as a filler material for rods, wires, electrodes or infiltration applications so that all the crevices are connected. The end result should be an overlay that has both amazing abrasive wear resistance in harsh environments, and excellent impact resistance.
Spherical Cast Tungsten Carbide Powder offers a range of exceptional features that make it a highly sought-after material for various industrial applications. With its unique properties and superior performance, this powder stands out as a versatile and reliable choice. Here are some of its key features:
Spherical Particle Shape: The powder is carefully engineered to have spherical particle shapes, which contribute to improved flowability, packing density, and uniform distribution. This characteristic ensures excellent consistency in coating and manufacturing processes, leading to enhanced end-product quality.
High Purity: Spherical Cast Tungsten Carbide Powder is produced using advanced refining techniques, resulting in a high-purity composition. The absence of impurities and contaminants ensures the powder's reliability, stability, and consistent performance, meeting the stringent requirements of various industries.
Hardness and Wear Resistance: Tungsten carbide is renowned for its exceptional hardness and wear resistance. This powder exhibits outstanding durability, making it ideal for applications where materials are subjected to extreme abrasion, erosion, or impact. It significantly extends the lifespan of components, providing cost-effective solutions for industries such as mining, oil and gas, manufacturing, and construction.
Thermal Stability: Spherical Cast Tungsten Carbide Powder has excellent thermal stability, allowing it to withstand high temperatures without compromising its structural integrity. This property makes it suitable for applications involving intense heat, such as thermal spray coatings, metal cutting tools, and wear-resistant parts used in high-temperature environments.
Chemical Inertness: The powder demonstrates high chemical inertness, rendering it resistant to various corrosive environments and chemical reactions. This characteristic makes it an ideal choice for components exposed to harsh chemicals, acids, or alkalis, ensuring long-lasting performance and minimal degradation.
Versatility: Spherical Cast Tungsten Carbide Powder offers versatility, allowing it to be used for a diverse range of industrial applications. Its exceptional hardness and wear resistance make it suitable for applications in mining, oil and gas, manufacturing, and construction; while its thermal stability and chemical inertness make it suitable for thermal spray coatings, metal cutting tools, and wear-resistant parts.
| Property | Value |
|---|---|
| Shape | Spherical |
| Material | Tungsten Carbide |
| Hardness | 2700 - 3100 HV0.1 |
| Apparent Density | 9.0 - 11.0 G/cm3 |
| Machinability | Good |
| Manufacture | Fused, Crushed and Plasma Densified |
| Product Name | Spherical Cast Tungsten Carbide |
Spherical Cast Tungsten Carbide, made in China, is a versatile material with a high hardness of 2700-3100 HV0.1, machinability, and an apparent density of 9.0-11.0 G/cm3. It is widely used in a variety of industrial and manufacturing applications, including wear-resistant components, cutting tools, drill bits, and dies. Spherical Cast Tungsten Carbide is also great for applications that require increased durability and strength, such as engine components, valves, and mechanical seals. With its excellent wear and corrosion resistance, Spherical Cast Tungsten Carbide is also ideal for medical instruments and orthopedic implants. Moreover, Spherical Cast Tungsten Carbide is suitable for high temperature and high pressure environments, such as surface coating, metal forming, and aerospace components.
Spherical Cast Tungsten Carbide is known for its superior performance and reliability, making it a popular choice for many industries. It has the ability to maintain its hardness even under extreme temperatures and pressures, making it an ideal choice for a variety of applications. The material’s high level of toughness also makes it suitable for abrasive applications, as well as for drilling and machining operations. Additionally, its excellent machinability and high thermal conductivity make it a great choice for applications that require precise and accurate cutting.
Spherical Cast Tungsten Carbide is a reliable and long-lasting material that is perfect for a variety of industrial applications. From wear-resistant components and cutting tools to engine components and medical instruments, Spherical Cast Tungsten Carbide is an excellent choice for any application that requires superior performance and reliability.
Technical support and services for Spherical Cast Tungsten Carbide are offered by our expert team.
Our technical support team is available to provide assistance with product selection, installation, maintenance, troubleshooting, and repair. We offer a range of services such as product training, onsite support, and remote assistance. We are also available to provide technical advice or consultation regarding any specific application or project.
We are committed to providing the highest quality of service and support to our customers. Our team is available to answer any questions you have regarding Spherical Cast Tungsten Carbide and related products.
