| Place of Origin: | China |
|---|---|
| Brand Name: | BODA |
| Certification: | ISO9001:2015 |
| Model Number: | Spherical Cast Tungsten Carbide |
| Minimum Order Quantity: | Negotiable |
| Price: | $60-65/Kgs |
| Packaging Details: | 50kg/Steel drum,25kg/Steel drum |
| Delivery Time: | Negotiable |
| Payment Terms: | Negotiable |
| Supply Ability: | 10 tons/month |
| Hardness: | 2700-3200HV0.1 | Process: | Laser Cladding,Arc Welding,PTA, |
|---|---|---|---|
| Applications: | PDC Bit, Oil Drill Pipe, TC Bearing Etc,Drill Tools | Classification: | Carbide, Tungsten-based (CTC-Spherical) |
| Manufacture: | Manufacture Fused, Crushed And Plasma Densified | Morphology: | Spherical Or Nearly Spherical |
| Apparent Density: | 9.0-11.0g/cc | Size: | 40-70mesh,60-80mesh,60-80mesh,100-200mesh |
| Highlight: | Drill Bits Tungsten Carbide Powder,PDC Bits Tungsten Carbide Powder,80mesh Cast Tungsten Carbide |
||
Description:

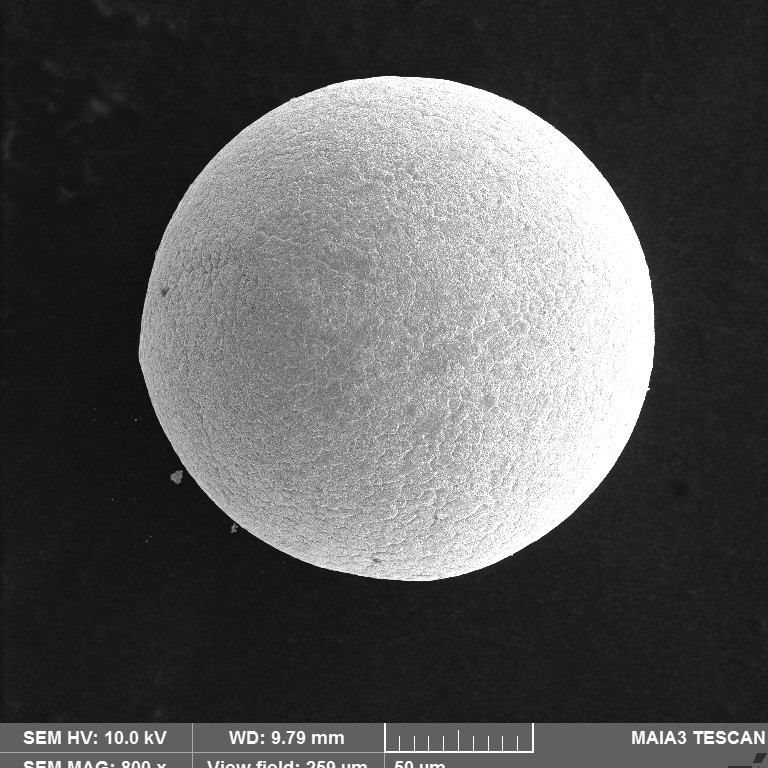

Spherical cast tungsten carbide dark gray particles which is made by ultra high-temperature spheroidization
or gas atomization process,is dendritic crystal composed of WC and W2C and has high melting point(2525 ℃)
high hardness(2700HV0.1),high feather structure,chemical stability,excellent flowability,high microhardness
and high wear corrosion resistance.
The products are used for the preparation of diamond of oil drill bit matrix materials,
Plasma (PTA)surfacing materials,spray welding materials and cemented carbide wear-resistant electrode(wire)etc.
and widely used in the oil drill bit,PDC drill tool and other melting,spraying(Welding),
and surfacing products,mainly used in the wear-resistant surface pre-reinforcement.
| Chemical composition ( Wt,%) | |||||||
| W | T.C | F.C | Fe | Co+Ni+Mo | Ti+Nb+Ta | Cr | V |
| 95-96 | 3.7-4.2 | < 0.08 | <0.5 | <0.2 | <0.2 | <0.1 | < 0.05 |
| Harding facing materials(Tungsten Carbide Series) | |||||
| Product | Boda Code | Regular Particle Size | Main Performance | Spray Process | Applicaitons |
| Cast Tungsten Carbide | CTC/Cast WC | 60-80Mesh |
high hardness high wear resistance. |
Laser cladding, Arc Welding, PTA, Spray and fuse powder welding |
PDC bit, oil drill pipe, TC bearing, etc |
| 80-100mesh | Tool surface reinforcement | ||||
| 100-140mesh | It is especially suitable for surfacing of petroleum and natural gas geological tools | ||||
| 10-2700mesh | Metallurgy, construction, grain and oil processing, mining machinery and other industries | ||||
| 200-400mesh | |||||
| Spherical Cast Tungsten Carbide | SCWC/CTC-S | 100-200mesh | high hardness and high wear resistance. |
Laser cladding, Arc Welding, PTA, Spray and fuse powder welding |
PDC bit, oil drill pipe, TC bearing, etc |
| 100-270 | Tool surface reinforcement | ||||
| 60-140mesh | It is especially suitable for surfacing of petroleum and natural gas geological tools | ||||
| 100-270mesh | Metallurgy, construction, grain and oil processing, mining machinery and other industries | ||||
| Macro Tungsten Carbide | Macro WC,MWC | 60-80mesh | Hard phase blend component for wear resistance |
Laser cladding, Arc Welding, PTA, Spray and fuse powder welding |
used as the materials of petroleum |
| 80-200mesh | geological drilling tire body | ||||
| 2000-400mesh | a new type of cemented carbide material. | ||||
| -325mesh | Mining equipment crushers and milling machinery,Heavy equipment mixer blades,decanters or extruder screws. | ||||
| Crystalline Tunsten Carbide | CTP | 60-325Mesh | strength and wear resistance | Vibration and liquid Metal Infitration | petroleum drilling diamond bits |
| 100-200mesh | as the raw materials of oil perforation pills,high temperature combustion chamber spraying coating | ||||
| 140-325mesh | wear resistance and high temperature resistance parts coating for slot or warehouse crashing parts,foklift buckets,crane hopper,screw feeder,ingot tongs and grind device components. | ||||
| Chromium Carbide | Cr3C2 | 140-325mesh | High temperature wear,oxidation and corrosion resistance | Atmospheric plasma spray/combustion powder thermospray | Piston rings,high friction coatings,hot forming dies,machine parts,hydraulic valves,wear protection on aluminum parts |
| 325-5um | For long-term protection of steel structure, first choice for all kinds of anti-corrosion engineering coating materials . | ||||
Related Products:
| Product | Regular Particle Size | Main Performance | Spray Process | Applicaitons |
| CTC+NiCrBSi | 150-53um | High hardness translates to excellent abrasion wear with impact resistant | PTA | Oil exploration equipment and down hole drilling tools |
| CTC+NiBSi | 150-53um | High hardness translates to excellent abrasion wear with impact resistant | PTA | Mild steel,stainless steel,Nickel alloys,Heat-treatable steels when preheated to 300℃ to avoid extensive cracking in the overlay |
| SCWC+NiCrBSi | 150-53um | High hardness translates to excellent abrasion wear with impact resistant | PTA,Laser cladding,pray and fuse,spray-fuse | Drill collars and tool joints used on oil exploration equipment. |
| SCWC+NiBSi | 150-53um | High hardness translates to excellent abrasion wear with impact resistant | PTA,Laser cladding,pray and fuse,spray-fuse | Ceramic conveyor screws,Agricultural shearing blades,Drill collars and tool joints used on oil exploration equipment.Heat-treatable steels when preheated to 300℃ to avoid extensive cracking in the overlay. |
| Macro WC+NiCrBSi | 150-53um/100-270mesh | Wear resistance | Oxy-acetylene welding, arc welding, PTA, laser cladding |
Mining equipment,Earth moving equipment,Food and chemical processing decanter screws |
| tubular welding rods | #2 Dia7*400mm 20-30mesh | Excellent wear resistance and impact resistance | Welding | Surfacing of workpiece surface in metallurgy, construction, grain and oil processing, mining machinery and other industries. |
| #3 Dia6*400mm 30-40mesh | ||||
| #4 Dia 5*400mm 40-60mesh | ||||
| #5 Dia4*400mm 60-80mesh | ||||
| Flexible welding rope | Dia4mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
Wear resistance,Anti-Corrosion | Oxy-acetylene Welding | Oil bit, stabilizer , geological bit, feed screw etc. |
| Dia6mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
||||
| Dia8mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
