| Place of Origin: | China |
|---|---|
| Brand Name: | BODA |
| Certification: | ISO9001:2015 |
| Model Number: | Spherical Cast Tungsten Carbide BD20401 |
| Minimum Order Quantity: | Negotiable |
| Price: | $60-65/Kgs |
| Packaging Details: | 50kg/Steel drum,25kg/Steel drum |
| Delivery Time: | Negotiable |
| Payment Terms: | Negotiable |
| Supply Ability: | 10 tons/month |
| Hardness: | 2700-3200HV0.1 | Process: | Laser Cladding,Arc Welding,PTA, |
|---|---|---|---|
| Applications: | PDC Bit, Oil Drill Pipe, TC Bearing Etc,Drill Tools | Classification: | Carbide, Tungsten-based (CTC-Spherical) |
| Manufacture: | Manufacture Fused, Crushed And Plasma Densified | Morphology: | Spherical Or Nearly Spherical |
| Bulk Density: | 6.5-9.5 G/cc | Size: | 40-270mesh, Or As Request |
| Highlight: | 270mesh Spherical Cast Tungsten Carbide,Arc Welding Cast Tungsten Carbide,Spherical Cast Tungsten Carbide Powder |
||
Spherical Cast Tungsten Carbide With Higher Hardness Widely Used In The Application Of Oil & Gas Industry.(CTC-S)
Chemicals compositons:
| Grade | W | T.C | F.C | Fe | Ti | MO+CO+Ni | Cr | Vi | SI | |
| BD20401 | Balance | 3.8-4.2 | ≤0.08 | ≤0.5 | ＜0.1 | ＜0.2 | ＜0.1 | ＜0.05 | ＜0.02 | |
| Micro-hardness HV 0.1 | Apparent Density g/cm3 | Melting Point ℃ |
| >2500 | >9.0 | 2525 |

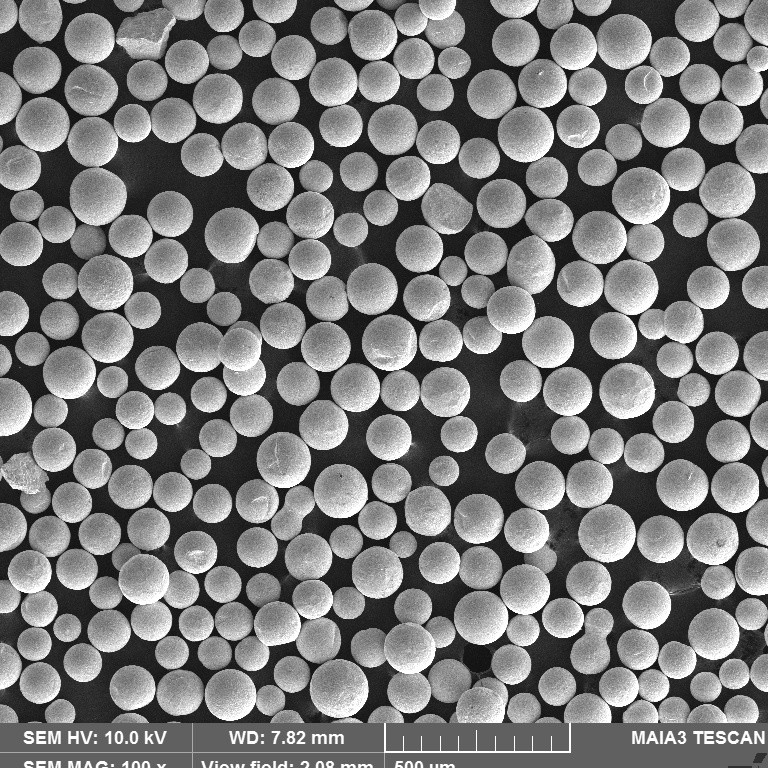

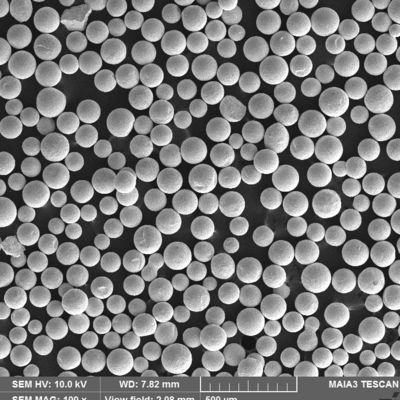

Spherical Cast Tungsten Carbide Powder (WC) is a hard material which is characterized by an extraordinary hardness and wear resistance. The spherical tungsten carbide powder has a silver-gray with a polygonal shape. It also performs an excellent abrasion resistance, corrosion resistance, and oxidation resistance.
CTC-S materials are designed to be the hard phase constituent of a wear-resistant surface.
Depending on the surfacing process, they can be blended with self-fluxing alloys or used a filler material for rods, wires, electrodes or infiltration applications.
Overlays containing these materials offer excellent abrasive wear resistance in harsh environments, combined with good impact resistance.
Oil sand extraction
Lignite mining
Petrochemical exploration, drilling and extraction
| Harding facing materials(Tungsten Carbide Series) | |||||
| Product | Boda Code | Regular Particle Size | Main Performance | Spray Process | Applicaitons |
| Cast Tungsten Carbide | CTC/Cast WC | 60-80Mesh |
high hardness high wear resistance. |
Laser cladding, Arc Welding, PTA, Spray and fuse powder welding |
PDC bit, oil drill pipe, TC bearing, etc |
| 80-100mesh | Tool surface reinforcement | ||||
| 100-140mesh | It is especially suitable for surfacing of petroleum and natural gas geological tools | ||||
| 10-2700mesh | Metallurgy, construction, grain and oil processing, mining machinery and other industries | ||||
| 200-400mesh | |||||
| Spherical Cast Tungsten Carbide | SCWC/CTC-S | 100-200mesh | high hardness and high wear resistance. |
Laser cladding, Arc Welding, PTA, Spray and fuse powder welding |
PDC bit, oil drill pipe, TC bearing, etc |
| 100-270 | Tool surface reinforcement | ||||
| 60-140mesh | It is especially suitable for surfacing of petroleum and natural gas geological tools | ||||
| 100-270mesh | Metallurgy, construction, grain and oil processing, mining machinery and other industries | ||||
| Macro Tungsten Carbide | Macro WC,MWC | 60-80mesh | Hard phase blend component for wear resistance |
Laser cladding, Arc Welding, PTA, Spray and fuse powder welding |
used as the materials of petroleum |
| 80-200mesh | geological drilling tire body | ||||
| 2000-400mesh | a new type of cemented carbide material. | ||||
| -325mesh | Mining equipment crushers and milling machinery,Heavy equipment mixer blades,decanters or extruder screws. | ||||
| Crystalline Tunsten Carbide | CTP | 60-325Mesh | strength and wear resistance | Vibration and liquid Metal Infitration | petroleum drilling diamond bits |
| 100-200mesh | as the raw materials of oil perforation pills,high temperature combustion chamber spraying coating | ||||
| 140-325mesh | wear resistance and high temperature resistance parts coating for slot or warehouse crashing parts,foklift buckets,crane hopper,screw feeder,ingot tongs and grind device components. | ||||
| Chromium Carbide | Cr3C2 | 140-325mesh | High temperature wear,oxidation and corrosion resistance | Atmospheric plasma spray/combustion powder thermospray | Piston rings,high friction coatings,hot forming dies,machine parts,hydraulic valves,wear protection on aluminum parts |
| 325-5um | For long-term protection of steel structure, first choice for all kinds of anti-corrosion engineering coating materials . | ||||
Related Products:
| Product | Regular Particle Size | Main Performance | Spray Process | Applicaitons |
| CTC+NiCrBSi | 150-53um | High hardness translates to excellent abrasion wear with impact resistant | PTA | Oil exploration equipment and down hole drilling tools |
| CTC+NiBSi | 150-53um | High hardness translates to excellent abrasion wear with impact resistant | PTA | Mild steel,stainless steel,Nickel alloys,Heat-treatable steels when preheated to 300℃ to avoid extensive cracking in the overlay |
| SCWC+NiCrBSi | 150-53um | High hardness translates to excellent abrasion wear with impact resistant | PTA,Laser cladding,pray and fuse,spray-fuse | Drill collars and tool joints used on oil exploration equipment. |
| SCWC+NiBSi | 150-53um | High hardness translates to excellent abrasion wear with impact resistant | PTA,Laser cladding,pray and fuse,spray-fuse | Ceramic conveyor screws,Agricultural shearing blades,Drill collars and tool joints used on oil exploration equipment.Heat-treatable steels when preheated to 300℃ to avoid extensive cracking in the overlay. |
| Macro WC+NiCrBSi | 150-53um/100-270mesh | Wear resistance | Oxy-acetylene welding, arc welding, PTA, laser cladding |
Mining equipment,Earth moving equipment,Food and chemical processing decanter screws |
| tubular welding rods | #2 Dia7*400mm 20-30mesh | Excellent wear resistance and impact resistance | Welding | Surfacing of workpiece surface in metallurgy, construction, grain and oil processing, mining machinery and other industries. |
| #3 Dia6*400mm 30-40mesh | ||||
| #4 Dia 5*400mm 40-60mesh | ||||
| #5 Dia4*400mm 60-80mesh | ||||
| Flexible welding rope | Dia4mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
Wear resistance,Anti-Corrosion | Oxy-acetylene Welding | Oil bit, stabilizer , geological bit, feed screw etc. |
| Dia6mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
||||
| Dia8mm: F:0.2-0.4mm M:0.4-0.7mm C:0.7-1.2mm |
