| Place of Origin: | China |
|---|---|
| Brand Name: | BODA |
| Certification: | ISO9001:2015 |
| Model Number: | BD-30101 |
| Minimum Order Quantity: | Negotiable |
| Price: | $19-24/kgs |
| Packaging Details: | 50kg/Steel Drum,25kg/Steel Drum,10kg/Bottle,10 or 20 bottles in a pallets |
| Delivery Time: | 7-15days |
| Payment Terms: | Negotiable |
| Supply Ability: | 10 tons/month |
| Classification: | Carbide,Chromium-based | Chemistry: | Cr3C2 |
|---|---|---|---|
| Particle Size: | 140-325Mesh,-325Mesh,325-5um | Apparent Density: | 2.7-3.0 G/cm3 |
| Purpose: | Corrosion And Wear Resistance | Process: | Atmospheric Plasma Spray |
| Manufacture: | Dense Sintered / Fused And Crushed | Service Temperature: | ≤ 900 °C (1650 °F) |
| Highlight: | Cr3C2 Metal Carbide Powder,Dense Sintered Metal Carbide Powder,Cr3C2 sintered metal carbides |
||
Chromium Carbide Metal Carbide Powder
Chemicals Composition:
| Ct | Cf | Cr | Fe | Si |
| ≥12.75 | ≤0.30 | ≥86.0 | ≤0.50 | ≤0.15 |
Chromium carbide powder is a high melting point inorganic material with good wear resistance, corrosion resistance and oxidation resistance in high temperature environment (1000-1100 degrees).
Advantage of thermal spray powder
Typical Properties and Applicaitons :
High microhardness and wear resistance at elevated temperatures, relatively poor interparticle strength.
For hot forming dies , mandrels, hydraulic valves ,machine parts.
For long-term protection of steel structure, first choice for all kinds of anti-corrosion engineering coating materials .
Chromium carbide coating technology is of great interest because of its high hardness,
thermal stability, wear and oxidation resistance.
As the coatings have a thermal coefficient of expansion similar to that of steel,
residual coating stresses at the coating-substrate interface are reduced on steel substrates.
It is also used as an excellent grain growth inhibitor during sintering of WC-Co cutting tools

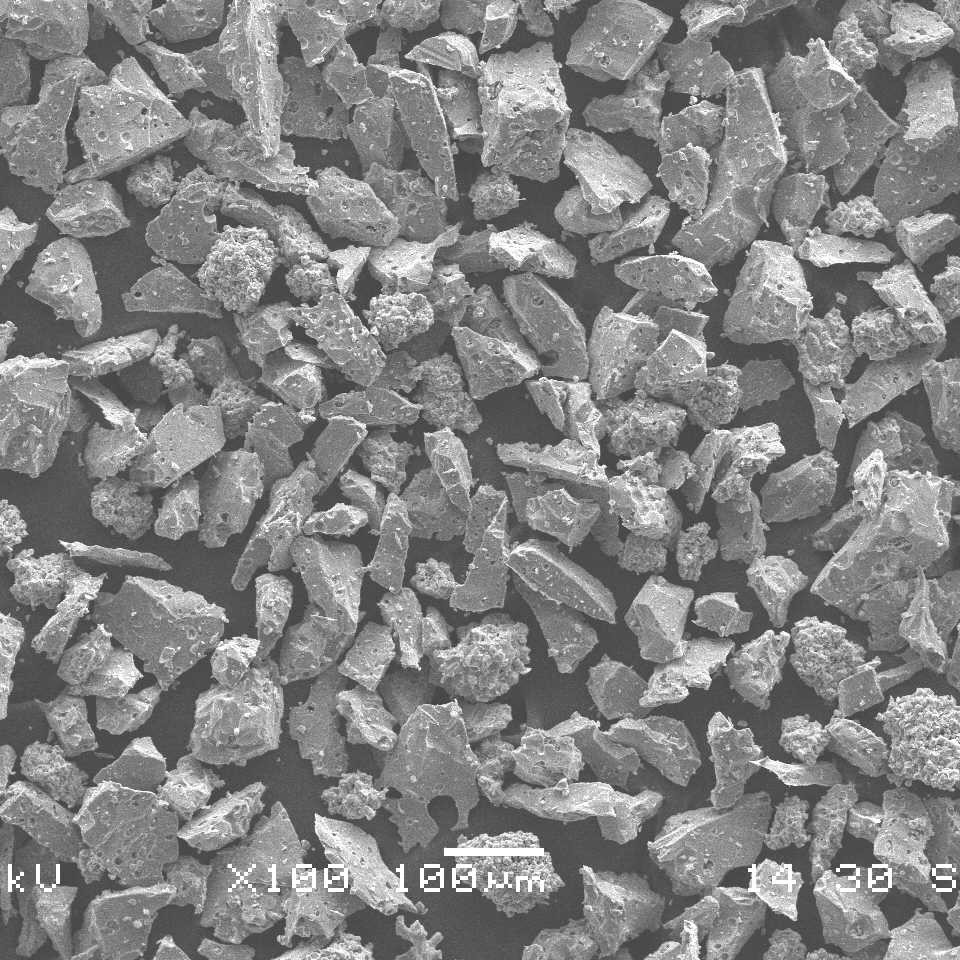

SEM OF Chromium Carbide
.
Boda HVOF Thermal Spray Powder Products ranges:
| Product | Particle Size | Equal to | Main Performance | Spray Process | Applications |
| WC-10Co-4Cr | 45-15um | Woka 3651 3652 3653 3654 3655 3665 |
Corrosive wear resistance |
HVOF,HVAF, Atmospheric Plasma |
Landing gears |
| 45-11um | Paper manufactureing rolls,Corrugating rollers | ||||
| 38-10um | Ball,gate and dump valves | ||||
| 25-5um | Hydroturbine buckets | ||||
| WC-12Co | 53-20um | Woka 3101, Woka 3102, Woka 3103, Woka 3105, |
Wear resistance |
HVOF,HVAF, Atmospheric Plasma |
Steel rolls |
| 45-15um | Corrugating rollers | ||||
| 38-10um | Sucker rod couplings | ||||
| 25-5um | Conveyor screws | ||||
| WC-17Co | 53-20um | Woka 3201 3202 3203 3205 3208 |
Ductile Wear resistance |
HVOF,HVAF, Atmospheric Plasma |
Landing gears |
| 45-15um | Pump seals | ||||
| 38-10um | Exhaust fans | ||||
| 25-5um | Crushing rollers | ||||
| WC-10Ni | 53-20um | Woka 3301 3302 3303 3304 3305 |
excellent corrosion resistance, abrasion and sliding wear |
HVOF,Plasma spray | ball valves,gate valves,oil field equipment |
| 45-15um | |||||
| 38-10um | radio-active environments | ||||
| WC-12Ni | 45-20um | Woka 3402 3403 3404 3406 |
excellent corrosion resistance, abrasion and sliding wear |
HVOF,Plasma spray | Steeling making |
| 45-15um | Centrifugal Casting | ||||
| 38-10um | Plastic centrifuge | ||||
| WC-15Ni | 53-20um | N/M |
excellent corrosion resistance, abrasion and sliding wear |
HVOF,Plasma spray | Steeling making |
| 45-15um | Centrifugal Casting | ||||
| 38-10um | Plastic centrifuge | ||||
| WC-20Cr3C-7Ni | 53-20um | Woka 3701 3702 3702-1 3703 | excellent oxidation resistance , good erosion,abrasion wear resistance; | HVOF,Plasma spray | iron&steel industry, paper making,pump and valve |
| 45-15um | field of Screw drilling tools | ||||
| 38-10um | chemical equipment in petroleum machinery | ||||
| 25NiCr-Cr3C2 | 53-20um | Woka 7201 7202 7203 7204 7205 7210 |
Excellent sliding,abrasion, erosion/Corrosion,wear resistance, Good cavitation,corrosion resistance. |
HVOF,HVAF, Atmospheric Plasma |
Gas turbine |
| 45-15um | aircraft engine,valve rod,powder generation boiler | ||||
| 38-10um | metallurgical furnace roller and hydraulic valve etc | ||||
| 20NiCr-Cr3C2 | 53-20um | Woka 7101 7102 7103 7104 7105 |
Excellent sliding,abrasion, erosion/Corrisionwear resistance, Good cavitation,corrosion resistance. |
HVOF,HVAF, Atmospheric Plasma |
Gas turbine |
| 45-15um | aircraft engine,valve rod,powder generation boiler | ||||
| 38-10um | metallurgical furnace roller and hydraulic valve etc |
Our company:
Our customer and certificate:
Advantages:
1.100% factory manufacturing and factory direct sales.
2. Competitive price and quality guarantee.
3.Trial order and customized testing sample are welcomed.
4.Independent research and development ability and high efficient production capacity.
5.We have more than 10 years of experience in producing Thermal spray powder,tungsten carbide materials,PTA,Metal Caride.
6.We have through the ISO9001 quality management system certification.
7.We have a professional team and engineer, can solve all the problems you meet .
