| Place of Origin: | China |
|---|---|
| Brand Name: | BODA |
| Certification: | ISO9001:2015 |
| Model Number: | Spherical Cast Tungsten Carbide BD20401 |
| Minimum Order Quantity: | Negotiable |
| Price: | $60-65/Kgs |
| Packaging Details: | 50kg/Steel drum,25kg/Steel drum |
| Delivery Time: | Negotiable |
| Payment Terms: | Negotiable |
| Supply Ability: | 10 tons/month |
| Hardness: | 2700HV0.1 Minimum | Charater: | Higher Hardness And High Wear Resistance |
|---|---|---|---|
| Process: | Laser Cladding,Arc Welding,PTA, | Applications: | PDC Bit, Oil Drill Pipe, TC Bearing Etc |
| Shape: | Spherical Or Nearly Spherical | Manufacture: | Plasma Spheroidization |
| Highlight: | Arc Welding Spherical Cast Tungsten Carbide,Oil Drill spherical Cast Tungsten Carbide,Spherical Cast wc powder |
||

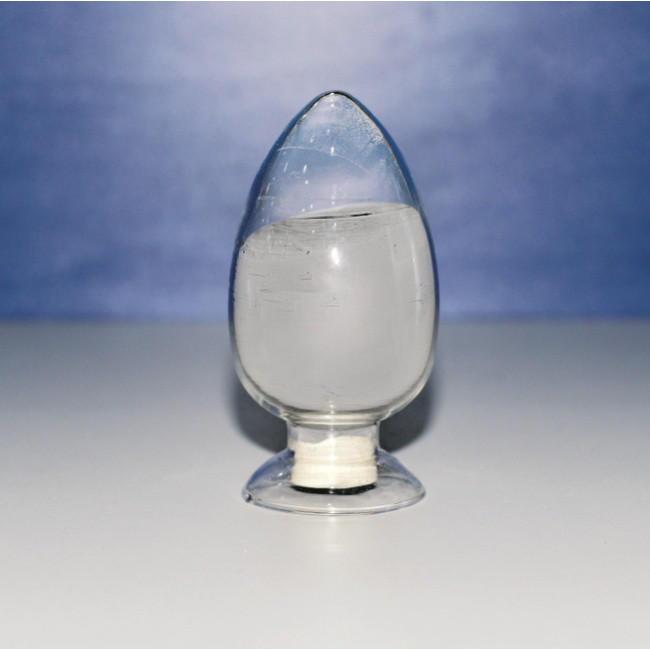

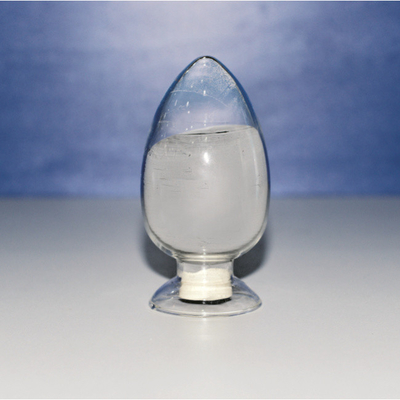

Spherical Cast Tungsten Carbide Powder(Spherical Cast WC,SCWC,Spherical WC)
Chemicals compositons:
| Grade | W | T.C | F.C | Fe | Ti | MO+CO+Ni | Cr | Vi | SI | |
| BD20401 | Balance | 3.8-4.2 | ≤0.08 | ≤0.5 | ＜0.1 | ＜0.2 | ＜0.1 | ＜0.05 | ＜0.02 | |
Products Descriptions:
Spherical cast tungsten carbide powder which is dendritic crystal composed of WC and W2C ,
and made by ultra high-temperature spheroidization or gas atomozation process.
This products applied as the preparation of diamond drill bits matrix materials,plasma surfacing materials,
coating materials and cemented carbide wear-resistant rope(wire) materials etc.
It's used in reinforcement of wear-resistant surface and used to make PDC,PDC drilling tool,production by infiltration,
spray welding,overlay.
It's has a high melting point,high hardness,high flowability,high wear resistance and chemical stability.
It’s used in reinforcement of wear-resistance surface and in the following applications:
Hardness/Microhardness:2700-3000HV0.2
Our facotry :
About Boda and advantages
The advantages of our company:
1.100% factory manufacturing and factory direct sales
2. Competitive price and quality guarantee
3.Small order is welcomed.
4.Customized Sample is acceptable .
5.Different specifications(purity and particle size .etc) of the product can be selected .
6.Delivery on time.
7.We have more than 20 years of experience in producing Thermal spray powder,Tungsten Carbide,PTA and Metal Carbide.
8.We have pass through the ISO9001 quality management system certification.
9.We have a professional team and engineer, can solve all the problems you meet .
