| Place of Origin: | China |
|---|---|
| Brand Name: | BODA |
| Certification: | ISO9001:2015 |
| Model Number: | Cast Tungsten Carbide BD-20101 |
| Minimum Order Quantity: | Negotiable |
| Price: | $45-50/Kgs |
| Packaging Details: | 50kg/Steel drum,25kg/Steel drum |
| Delivery Time: | Negotiable |
| Payment Terms: | Negotiable |
| Supply Ability: | 10tons/months |
| Hardness: | 2100HV0.1 | Charater: | High Hardness And High Wear Resistant |
|---|---|---|---|
| Process: | Laser Cladding,Arc Welding,PTA, | Applications: | PDC Bit, Oil Drill Pipe, TC Bearing Etc |
| Classification: | Carbide, Tungsten-based (CTC) | Chemistry: | W2C-WC |
| Highlight: | WC W2C Tungsten Carbide,Two Phase Fused Tungsten Carbide Powder,W2C Tungsten Carbide Powder |
||
Fused Tungsten Carbides (CTC)Two-Phase Tungsten Carbide Blend Materials For Hard Face Applications
Chemicals compositons:
| Grade | W | T.C | F.C | Fe | Ti | Ni | Cr | Co | V | |
| BD20101 | Balance | 3.8-4.2 | ≤0.05 | ≤0.5 | ＜0.1 | ＜0.1 | ＜0.1 | ＜0.1 | ＜0.1 | |
| Hardness HRA | Micro-hardness HV 0.1 | Density g/cm3 | Melt Point ℃ |
| 93.0-93.7 | 1700-2500 | 16.5 | 2525 |
Products descriptions:

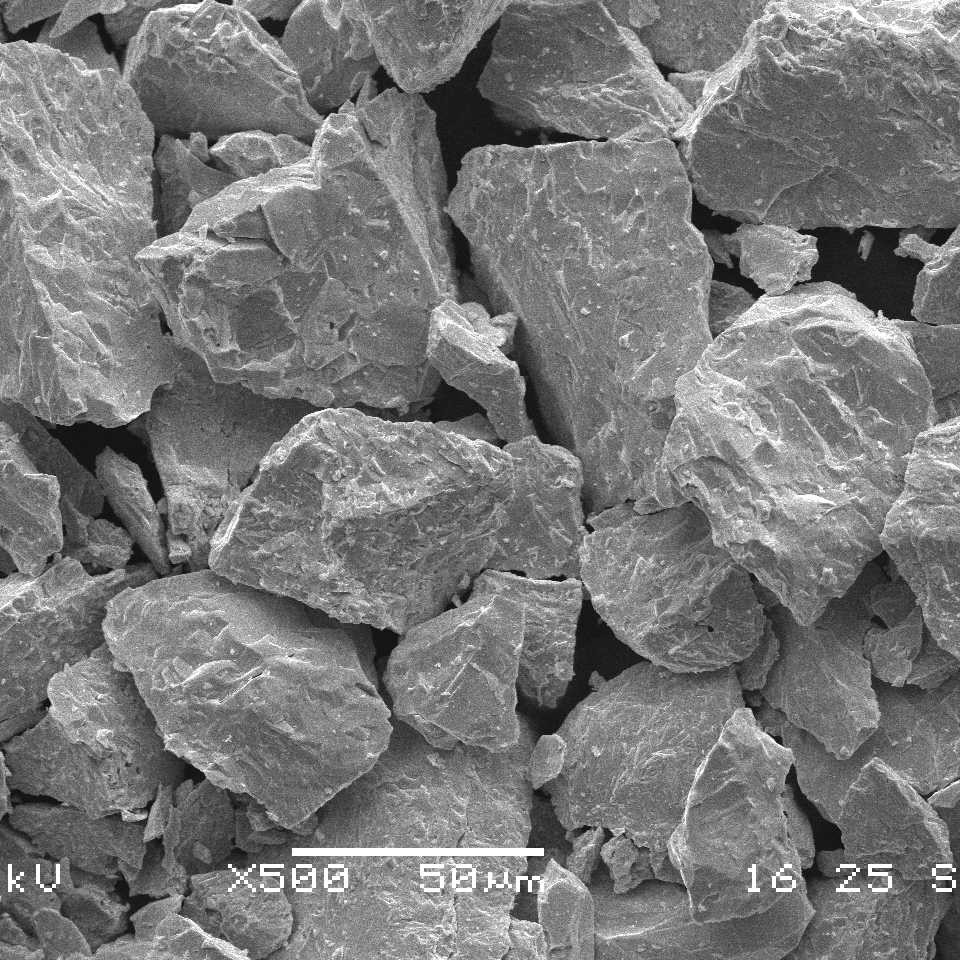

Fused Tungsten Carbides (CTC) are irregularly shaped, two-phase tungsten carbide powders.
CTC materials are designed to be the hard phase constituent of a wear-resistant surface.
Depending on the surfacing process, they can be blended with self-fluxing alloys or
used a filler material for rods, wires, electrodes or infiltration applications.
Overlays containing these materials offer excellent abrasive wear resistance in harsh environments
that can tolerate some impact resistance.
CTC products are appropriate for many different applications with different wear conditions.
| Harding facing materials(Tungsten Carbide Series) | |||||
| Product | Boda Code | Regular Particle Size | Main Performance | Spray Process | Applicaitons |
| Cast Tungsten Carbide | CTC/Cast WC | 60-80Mesh | high hardness and high wear resistance. | Laser cladding,Arc Welding,PTA,Spray and fuse powder welding | PDC bit, oil drill pipe, TC bearing, etc |
| 80-100mesh | Tool surface reinforcement | ||||
| 100-140mesh | It is especially suitable for surfacing of petroleum and natural gas geological tools | ||||
| 10-2700mesh | Metallurgy, construction, grain and oil processing, mining machinery and other industries | ||||
| 200-400mesh | |||||
| Spherical Cast Tungsten Carbide | SCWC/CTC-S | 100-200mesh | high hardness and high wear resistance. | Laser cladding,Arc Welding,PTA,Spray and fuse powder welding | PDC bit, oil drill pipe, TC bearing, etc |
| 100-270 | Tool surface reinforcement | ||||
| 60-140mesh | It is especially suitable for surfacing of petroleum and natural gas geological tools | ||||
| 100-270mesh | Metallurgy, construction, grain and oil processing, mining machinery and other industries | ||||
| Macro Tungsten Carbide | Macro WC,MWC | 60-80mesh | Hard phase blend component for wear resistance | Laser cladding,Arc Welding,PTA,Spray and fuse powder welding | used as the materials of petroleum |
| 80-200mesh | geological drilling tire body | ||||
| 2000-400mesh | a new type of cemented carbide material. | ||||
| -325mesh | Mining equipment crushers and milling machinery,Heavy equipment mixer blades,decanters or extruder screws. | ||||
| Crystalline Tunsten Carbide | CTP | 60-325Mesh | strength and wear resistance | Vibration and liquid Metal Infitration | petroleum drilling diamond bits |
| 100-200mesh | as the raw materials of oil perforation pills,high temperature combustion chamber spraying coating | ||||
| 140-325mesh | wear resistance and high temperature resistance parts coating for slot or warehouse crashing parts,foklift buckets,crane hopper,screw feeder,ingot tongs and grind device components. | ||||
| Chromium Carbide | Cr3C2 | 140-325mesh | High temperature wear,oxidation and corrosion resistance | Atmospheric plasma spray/combustion powder thermospray | Piston rings,high friction coatings,hot forming dies,machine parts,hydraulic valves,wear protection on aluminum parts |
| 325-5um | For long-term protection of steel structure, first choice for all kinds of anti-corrosion engineering coating materials . | ||||
About Boda and our Advantages:
Advantages:
1.100% factory manufacturing and factory direct sales.
2. Competitive price and quality guarantee.
3.Trial order and customized testing sample are welcomed.
4.Independent research and development ability and high efficient production capacity.
5.We have more than 10 years of experience in producing Thermal spray powder,tungsten carbide materials,PTA,Metal Caride.
6.We have through the ISO9001 quality management system certification.
7.We have a professional team and engineer, can solve all the problems you meet .
