| Place of Origin: | China |
|---|---|
| Brand Name: | BODA |
| Certification: | ISO9001:2015 |
| Model Number: | Cast Tungsten Carbide BD-20101 |
| Minimum Order Quantity: | Negotiable |
| Price: | $45-50/Kgs |
| Packaging Details: | 50kg/Steel drum,25kg/Steel drum |
| Delivery Time: | Negotiable |
| Payment Terms: | Negotiable |
| Supply Ability: | 10tons/months |
| Color: | Dark-gray Powder | Charater: | High Hardness And High Wear Resistant |
|---|---|---|---|
| Industry: | Metallurgy, Construction, Grain & Oil Processing, Mining Machinery And Other Industries | Applications: | Suitable For Surfacing Of Petroleum And Natural Gas Geological Tools |
| Chemical Composition: | WC | Dimensions: | 20-30mesh,40-60mesh,100-140mesh |
| Highlight: | Surface Treatment Cast Tungsten Carbide Powder,30 Mesh Cast Tungsten Carbide Powder,wc tungsten carbide |
||
Fuse Tungsten Carbide Powder Suitable For Surface Treatment With High Wear Resistance(Fuse WC,Cast WC,CTC,Crushed WC)
Chemicals compositons:
| Grade | W | T.C | F.C | Fe | Ti | Ni | Cr | Co | V | |
| BD20101 | Balance | 3.8-4.2 | ≤0.05 | ≤0.5 | ＜0.1 | ＜0.1 | ＜0.1 | ＜0.1 | ＜0.1 | |
| 60-80Mesh/250-180um | 80-100Mesh/180-150um | 200-400Mesh/75-37um |
| 100-140Mesh/150-105um | 140-200Mesh/105-75um | -325Mesh/-45um |
Products descriptions:

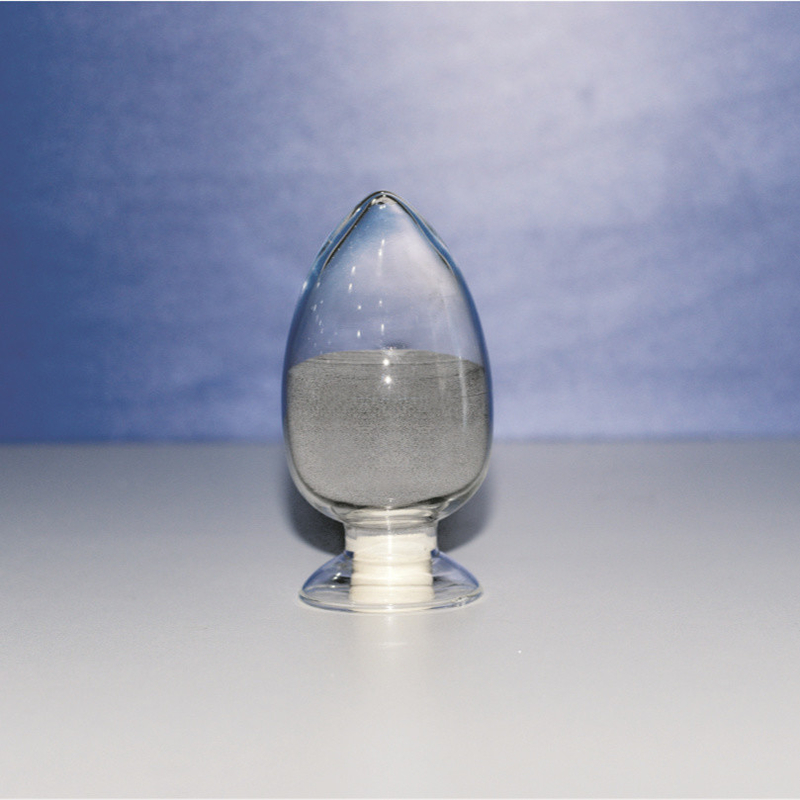

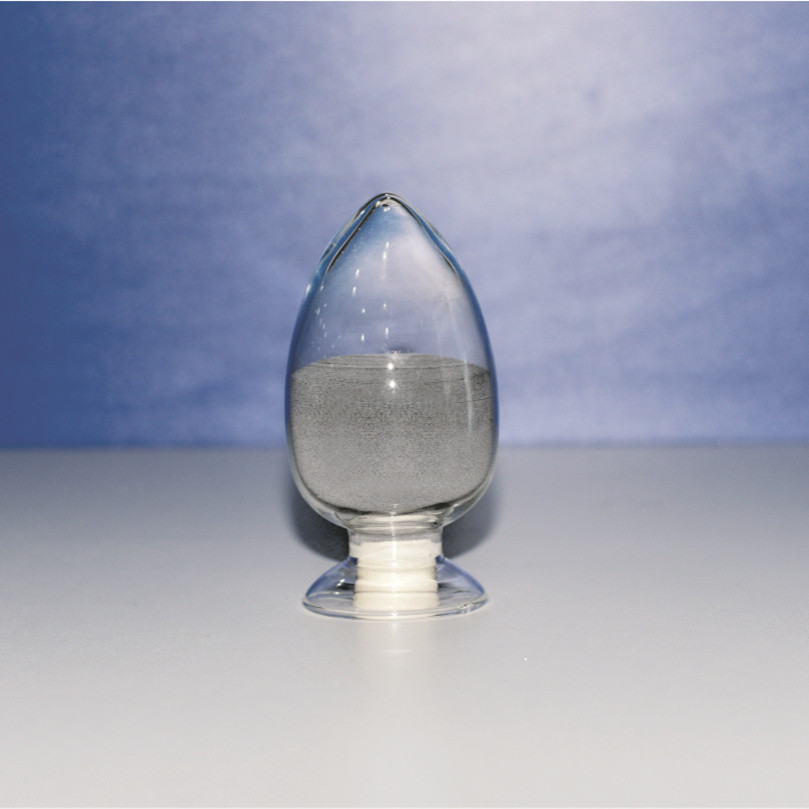

Cast Tungsten Carbide is a powder of irregular dark-gray granule with high melting point,
high hardness and high wear resistance.Adopted high temperature melting, crushing process.
Due to its special characters, the products are widely used in mining, oil, metallurgical industry, steel,
construction machinery and other industries which applied in the pre-reinforcement of wear-resistant surface
and repairing for easily worn parts.
Cast Tungsten Carbide can be used as the oil drilling & exploring drill matrix by the way of melt-penetration.
It canalso bead-welded at the locations where wear resistance needed on the unit by oxygen-acetylene welding or by electrical welding,
spray welding,brazing welding and infiltrating welding.
Hard facing materials series:
| Product | Boda Code | Regular Particle Size | Main Performance | Spray Process | Applicaitons |
| Cast Tungsten Carbide | CTC/Cast WC | 60-80Mesh | high hardness and high wear resistance. | Laser cladding,Arc Welding,PTA,Spray and fuse powder welding | PDC bit, oil drill pipe, TC bearing, etc |
| 80-100mesh | Tool surface reinforcement | ||||
| 100-140mesh | It is especially suitable for surfacing of petroleum and natural gas geological tools | ||||
| 10-2700mesh | Metallurgy, construction, grain and oil processing, mining machinery and other industries | ||||
| 200-400mesh | |||||
| Spherical Cast Tungsten Carbide | SCWC/CTC-S | 100-200mesh | high hardness and high wear resistance. | Laser cladding,Arc Welding,PTA,Spray and fuse powder welding | PDC bit, oil drill pipe, TC bearing, etc |
| 100-270 | Tool surface reinforcement | ||||
| 60-140mesh | It is especially suitable for surfacing of petroleum and natural gas geological tools | ||||
| 100-270mesh | Metallurgy, construction, grain and oil processing, mining machinery and other industries | ||||
| Macro Tungsten Carbide | Macro WC,MWC | 60-80mesh | Hard phase blend component for wear resistance | Laser cladding,Arc Welding,PTA,Spray and fuse powder welding | used as the materials of petroleum |
| 80-200mesh | geological drilling tire body | ||||
| 2000-400mesh | a new type of cemented carbide material. | ||||
| -325mesh | Mining equipment crushers and milling machinery,Heavy equipment mixer blades,decanters or extruder screws. | ||||
| Crystalline Tungsten Powder | CTP | 60-325Mesh | strength and wear resistance | Vibration and liquid Metal Infitration | petroleum drilling diamond bits |
| 100-200mesh | as the raw materials of oil perforation pills,high temperature combustion chamber spraying coating | ||||
| 140-325mesh | wear resistance and high temperature resistance parts coating for slot or warehouse crashing parts,foklift buckets,crane hopper,screw feeder,ingot tongs and grind device components. |
Our Factory and Lab.
Packing:
Advantages:
1.100% factory manufacturing and factory direct sales.
2. Competitive price and quality guarantee.
3.Trial order and customized testing sample are welcomed.
4.Independent research and development ability and high efficient production capacity.
5.We have more than 10 years of experience in producing Thermal spray powder,tungsten carbide materials,PTA,Metal Caride.
6.We have through the ISO9001 quality management system certification.
7.We have a professional team and engineer, can solve all the problems you meet .
